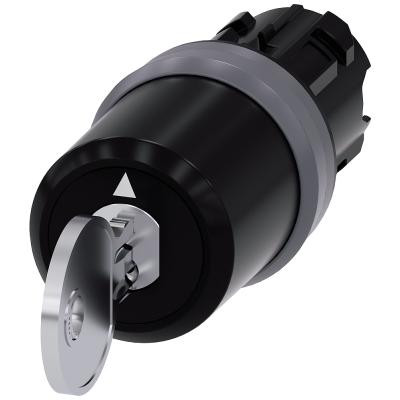

Key-operated switch BKS, 22 mm, round, metal front ring, key removal II

АКТУАТОР ПОВОРОТНОГО ПЕРЕКЛЮЧАТЕЛЯ С КЛЮЧОМ BKS, 22MM, КРУГЛ., ПЛАСТИК С МЕТАЛЛИЧЕСКИМ ФРОНТАЛЬНЫМ КОЛЬЦОМ, НОМЕР ЗАМКА S1, С 2 КЛЮЧАМИ, 3 КОММУТАЦИОННЫХ ПОЛОЖЕНИЯ: I-O-II, С ФИКСАЦИЕЙ, УГОЛ ПОВОРОТА РУКОЯТКИ 2X50 ГРАД. ПОЛОЖЕНИЕ ИЗЪЯТИЯ КЛЮЧА: II Key-operated switches SIRIUS ACT for meeting higher demands for access security. Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic. An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated. Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation. As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility. The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available. Versions available: Various locking systems (Siemens, BKS, RONIS, OMR, IKON), 2/3 switch positions, latching/momentary-contact operation, various key removal positions. Note: Single device, please order holders and modules separately. SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.

Параметры

Hole diameter	22.3
Number of switch positions	3
Suitable for illumination	Нет
Spring-return	Нет
Colour front ring	Grey
Degree of protection (IP), front side	IP67/IP69K
Width opening	29.5
Height opening	56.3
Material front ring	Metal
With front ring	Да
Construction type lens	Rectangular
Type of control element	Key
Colour indicator light cap	-
Colour control element	Silver
Switching function latching	Нет
Degree of protection (NEMA)	-
