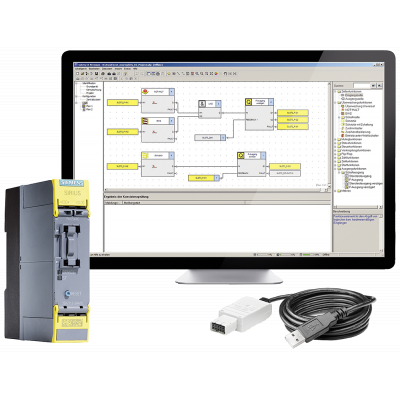

Starter-Kit 3SK2 content: 3SK2112-2 AA10 Software SIRIUS Safety ES V1.0 Standard
380.16€
Включая НДС
Артикул: 3SK2941-2AA10
СТАРТОВЫЙ НАБОР ДЛЯ РЕЛЕ БЕЗОПАСНОСТИ 3SK2 CONTENT: 3SK2 22.5 MM? ПОДКЛЮЧЕНИЕ БАЗОВОГО МОДУЛЯ - ПРУЖИННЫЕ КЛЕММЫ, SIRIUS SAFETY ES V 1.0 SOFTWARE STANDARD, НОМ. ПИТАЮЩЕЕ НАПРЯЖЕНИЕ УПРАВЛЕНИЯ USB PC КАБЕЛЬ starter kit SIRIUS 3SK2 for demanding safety applications involving more than one safety function.
Параметры
| Width | 22.5 |
| Model | Basic device |
| Height | 100.0 |
| Depth | 124.5 |
| Release-delay | - |
| With approval according to UL | Да |
| With detachable clamps | Да |
| With start input | - |
| With feedback circuit | - |
| Number of outputs, safety related, undelayed, with contact | 0 |
| Number of outputs, safety related, delayed, with contact | - |
| Number of outputs, safety related, undelayed, semiconductors | 2 |
| Number of outputs, safety related, delayed, semiconductors | - |
| Number of outputs, signalling function, undelayed, with contact | - |
| Number of outputs, signalling function, delayed, with contact | - |
| Number of outputs, signalling function, undelayed, semiconductors | - |
| Number of outputs, signalling function, delayed, semiconductors | - |
| Type of electric connection | Spring clamp connection |
| Rail mounting possible | Нет |
| Rated control supply voltage Us at AC 50HZ | - |
| Rated control supply voltage Us at AC 60HZ | - |
| Rated control supply voltage Us at DC | 24 |
| With muting function | Нет |
| Type of safety acc. IEC 61496-1 | - |
| With approval for TÜV | Да |
| With approval for BG BIA | - |
| Category according to EN 954-1 | - |
| Suitable for monitoring of magnetic switches | Да |
| Suitable for monitoring of proximity switches | Да |
| Suitable for monitoring of emergency-stop circuits | Да |
| Suitable for monitoring of optoelectronic protection equipment | Да |
| Suitable for monitoring of position switches | Да |
| Suitable for monitoring of tactile sensors | - |
| Suitable for monitoring of valves | Да |
| Performance level acc. EN ISO 13849-1 | Level e |
| Stop category acc. IEC 60204 | 0 + 1 |
| Voltage type for actuating | DC |
| Evaluation inputs | - |
| SIL according to IEC 61508 | 3 |
