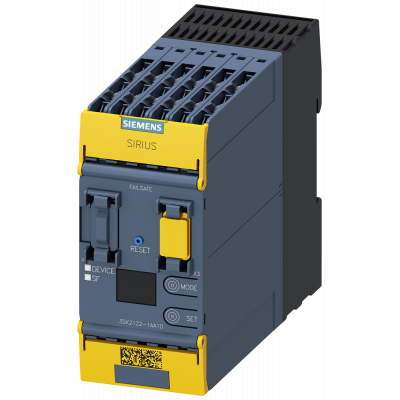

SIRIUS safety relay basic unit 3SK2, 20 F-DI, 4 F-DQ, 2 DQ, 24 V DC
487.70€
Включая НДС
Артикул: 3SK2122-1AA10
БАЗОВЫЙ МОДУЛЬ РЕЛЕ БЕЗОПАСНОСТИ SIRIUS СЕРИИ 3SK2, 20 F-DI, 4 F-DQ, 2 DQ, 24В DC, ПАРАМЕТРИРОВАНИЕ С ПОМОЩЬЮ SIRIUS SAFETY ES, ШИРИНА 45MM, ВИНТОВЫЕ КЛЕММЫ, СООТВЕТСТВУЕТ ТРЕБОВАНИЯМ ДО SIL3 (IEC 61508) , ДО УРОВНЯ БЕЗОПАСНОСТИ PL E (ISO 13849-1), РАСШИРЕНИЯ ВЫХОДОВ 3SK1 И ПУСКАТЕЛИ С ИНТЕГРИРОВАННОЙ ФУНКЦИЙЕЙ БЕЗОПАСНОСТИ ПОДКЛЮЧАЮТСЯ ПРИ ПОМОЩИ КОННЕКТОРОВ Base-Unit SIRIUS 3SK2 for demanding safety applications involving more than one safety function.
The 3SK2 basic units offer a large number of inputs and outputs within a narrow unit in order to meet demanding safety applications with several independent safety functions. Flexible application options are enabled by powerful semiconductor outputs, as well as by expandability with additional 3SK1 output expansions and seamless integration into the main conducting path using 3RM1 Failsafe motor starters. Extensive logic functions are available for assigning parameters to independent disconnections of the fail-safe outputs. The SIRIUS Safety ES engineering software allows easy commissioning and offers extensive diagnostic options. Easy implementation of muting and protective door monitoring, for example, is possible by means of prefabricated logic blocks.
Devices in 22.5 mm design with 10 input and 2 semiconductor outputs or in 45 mm design with 20 input and 4 outputs, all with either screw-type or spring-type terminals (push-in).
Extensive accessories such as diagnostics display, sealing covers, push-in lugs for wall mounting and coding pins make handling easier. Output expansions can be used by means of device connectors without additional wiring outlay.
Safety is a SIRIUS business.
Параметры
| Width | 45.0 |
| Model | Basic device |
| Height | 100.0 |
| Depth | 124.5 |
| Release-delay | - |
| With approval according to UL | Да |
| With detachable clamps | Да |
| With start input | - |
| With feedback circuit | - |
| Number of outputs, safety related, undelayed, with contact | 0 |
| Number of outputs, safety related, delayed, with contact | - |
| Number of outputs, safety related, undelayed, semiconductors | 4 |
| Number of outputs, safety related, delayed, semiconductors | - |
| Number of outputs, signalling function, undelayed, with contact | - |
| Number of outputs, signalling function, delayed, with contact | - |
| Number of outputs, signalling function, undelayed, semiconductors | - |
| Number of outputs, signalling function, delayed, semiconductors | - |
| Type of electric connection | Screw connection |
| Rail mounting possible | Нет |
| Rated control supply voltage Us at AC 50HZ | - |
| Rated control supply voltage Us at AC 60HZ | - |
| Rated control supply voltage Us at DC | 24 |
| With muting function | Нет |
| Type of safety acc. IEC 61496-1 | - |
| With approval for TÜV | Да |
| With approval for BG BIA | - |
| Category according to EN 954-1 | - |
| Suitable for monitoring of magnetic switches | Да |
| Suitable for monitoring of proximity switches | Да |
| Suitable for monitoring of emergency-stop circuits | Да |
| Suitable for monitoring of optoelectronic protection equipment | Да |
| Suitable for monitoring of position switches | Да |
| Suitable for monitoring of tactile sensors | - |
| Suitable for monitoring of valves | Да |
| Performance level acc. EN ISO 13849-1 | Level e |
| Stop category acc. IEC 60204 | 0 + 1 |
| Voltage type for actuating | DC |
| Evaluation inputs | - |
| SIL according to IEC 61508 | 3 |
