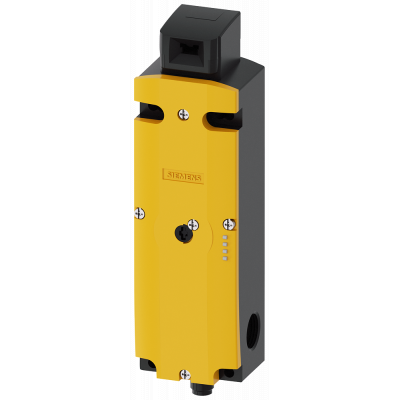

Safety position switch with tumbler, locking force 1300 N

ПОЗИЦИОННЫЙ ВЫКЛЮЧАТЕЛЬ БЕЗОПАСНОСТИ C SOLENOID С БЛОКИРОВКОЙ,УСИЛИЕ БЛОКИРОВКИ 1300N, 5 DIRECTIONS OF APPROACH ПЛАСТИКОВЫЙ КОРПУС, M12 CONNECT. ASISAFE INTEGRATED CH1 =ИСПОЛНИТЕЛЬНЫЙ ЭЛЕМЕНТ 2НЗ, TO 2-OUT-OF-2 EV, ALUATION, CH2=MAGNET 1НЗ ПРУЖ. -ACTUATED LOCK,AUXIL. RELEASE ON FRONT Mechanical safety switches SIRIUS 3SF13 for position monitoring of movable protective devices with direct connection to the AS-interface bus system. Thanks to their integrated ASIsafe electronics, which require only minimal current, the mechanical safety switches have a compact design. 3D-coded actuators guarantee strong protection against manipulation. Two LEDs indicate the current state of the device. The switches can be used for the highest safety requirements specified by PL e or SIL 3. Device versions are also available with a high IP69K degree of protection. Various enclosure sizes are available in plastic or metal. In addition, versions are available with separate actuator with tumbler, or as a safety hinge switch. The portfolio is completed by a series of devices with IP69K degree of protection. Depending on the design, actuator heads, separate actuators, plug-in connectors and other mounting/connection accessories are available. Safety is a SIRIUS business.

Параметры

Rated operation current Ie at AC-15, 230 V	-
Rated operation current Ie at DC-13, 230 V	-
Material housing	Plastic
Suitable for safety functions	Да
Coating housing	Uncoated
With status indication	Да
Type of switching contact	Slow-action switch
Type of interface for safety communication	AS-Interface Safety at Work
Type of electric connection	Plug-in connection M12
Explosion safety category for gas	None
Explosion safety category for dust	None
Construction type housing	Special construction
Degree of protection (IP)	IP66/IP67
Number of safety auxiliary contacts	4
Type of interface	AS-Interface
Rated control supply voltage Us magnet drive at AC 50 Hz	-
Rated control supply voltage Us magnet drive at AC 60 Hz	-
Rated control supply voltage Us magnet drive at DC	24
Rated operation current Ie at AC-15, 125 V	-
Rated operation current Ie at AC-15, 24 V	-
Rated operation current Ie at DC-13, 125 V	-
Rated operation current Ie at DC-13, 24 V	-
Width sensor	54.0
With escape release	Нет
Height of sensor	43.5
Length of sensor	185.0
Ambient temperature during operating	-25
Guard locking force	1300
Number of contacts as normally closed contact	-
Number of contacts as normally open contact	-
Number of contacts as change-over contact	-
Degree of protection (NEMA)	-
With auxiliary release	-
Type of guard locking	Quiescent current principle
