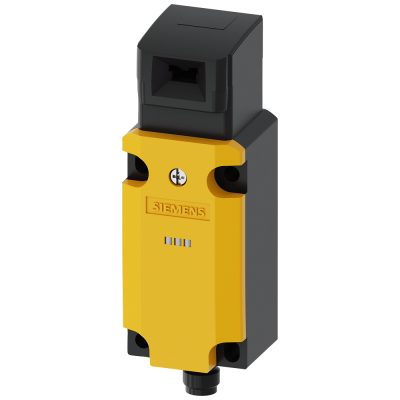

SAFETY POS. SWITCH C РАЗДЕЛЬНЫМ ИСПОЛНИТЕЛЬНЫЙ ЭЛЕМЕНТ, 5 DIRECT. OF APPROACH МЕТ. КОРПУС В СООТВ. С EN50041 ASISAFE INTEGRATED AS-I STATUS:1:F-IN1, 2

SAFETY POS. SWITCH C РАЗДЕЛЬНЫМ ИСПОЛНИТЕЛЬНЫЙ ЭЛЕМЕНТ, 5 DIRECT. OF APPROACH МЕТ. КОРПУС В СООТВ. С EN50041 ASISAFE INTEGRATED AS-I STATUS:1:F-IN1, 2:F-IN2 3:AS-I/FAULT КОНТАКТЫ ПЛАВНОГО ХОДА (SLOW ACTION) 2НЗW/ M12 ШТЕКЕР 4-ПОЛ., КАНАЛ 1 ON NC, КАНАЛ 2 ON NC Mechanical safety switches SIRIUS 3SF11 for position monitoring of movable protective devices with direct connection to the AS-interface bus system. Thanks to their integrated ASIsafe electronics, which require only minimal current, the mechanical safety switches have a compact design. 3D-coded actuators guarantee strong protection against manipulation. Two LEDs indicate the current state of the device. The switches can be used for the highest safety requirements specified by PL e or SIL 3. Device versions are also available with a high IP69K degree of protection. Various enclosure sizes are available in plastic or metal. In addition, versions are available with separate actuator with tumbler, or as a safety hinge switch. The portfolio is completed by a series of devices with IP69K degree of protection. Depending on the design, actuator heads, separate actuators, plug-in connectors and other mounting/connection accessories are available. Safety is a SIRIUS business.

Параметры

Rated operation current Ie at AC-15, 230 V	-
Rated operation current Ie at DC-13, 230 V	-
Material housing	Metal
Suitable for safety functions	Да
Coating housing	Lacquered
With status indication	Да
Type of switching contact	Slow-action switch
Type of interface for safety communication	AS-Interface Safety at Work
Type of electric connection	Plug-in connection M12
Explosion safety category for gas	None
Explosion safety category for dust	None
Construction type housing	Cuboid
Degree of protection (IP)	IP66/IP67
Forced opening	Да
Number of safety auxiliary contacts	2
Type of interface	None
Rated operation current Ie at AC-15, 125 V	-
Rated operation current Ie at AC-15, 24 V	-
Rated operation current Ie at DC-13, 125 V	-
Rated operation current Ie at DC-13, 24 V	-
Width sensor	40.0
Height of sensor	37.3
Length of sensor	124.0
Ambient temperature during operating	-25
Number of contacts as normally closed contact	2
Number of contacts as normally open contact	0
Number of contacts as change-over contact	0
Degree of protection (NEMA)	-
