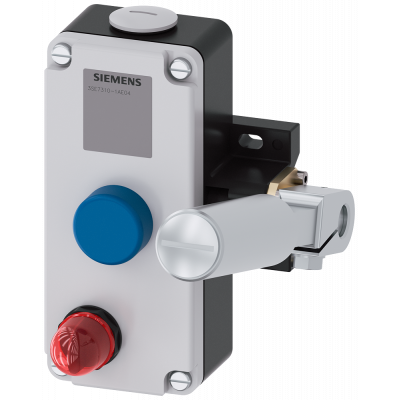

Conveyor belt unbalance tracker 2x M25x1.5 2 NO + 2 NC, latching EN418 pushbutton release

УСТРОЙСТВО КОНТРОЛЯ БОКОВОГО СМЕЩЕНИЯ ПОЛОТНА МЕТАЛЛ. КОРПУС, 2X M25X1, 5 2НО+2НЗ, С ФИКСАЦИЕЙ СОГЛАСНО EN418 РАЗБЛОКИРОВКА КНОПКОЙ С LED-ЛАМПОЙ 24VDC, КРАСНАЯ cable-operated switch SIRIUS 3SE7 for monitoring or for EMERGENCY STOP devices on system components particularly subject to hazards, e.g. conveyor belts. Using the cable-operated switches, control functions and EMERGENCY STOP can be implemented for any requirement and routing. The devices are easy to unlock and have integrated EMERGENCY STOP buttons as well as an LED signal display that is visible from a considerable distance. The switches can be used for the highest safety requirements specified by PL e or SIL 3. They are available with different cable lengths, combinations of switching elements, with LED display or EMERGENCY STOP mushroom pushbutton. The versions with latching are supplied with pressure, key or rotate-to-unlatch mechanisms. Steel cables with red plastic sheathing in various lengths with corresponding mounting accessories are available as accessories. Safety is a SIRIUS business.

Параметры

Number of command positions	-
Colour housing cover	Grey
Suitable for emergency stop	-
Material housing	Metal
Number of indicator lights	1
Rated control supply voltage Us at AC 50HZ	-
Rated control supply voltage Us at AC 60HZ	-
Rated control supply voltage Us at DC	-
Degree of protection (IP)	IP65
Number of push buttons	1
Number of selector switches	-
Number of key switches	-
Number of mushroom-shaped push-buttons	0
Number of contacts as normally closed contact	2
Number of contacts as normally open contact	2
Number of contacts as change-over contact	0
Degree of protection (NEMA)	-
