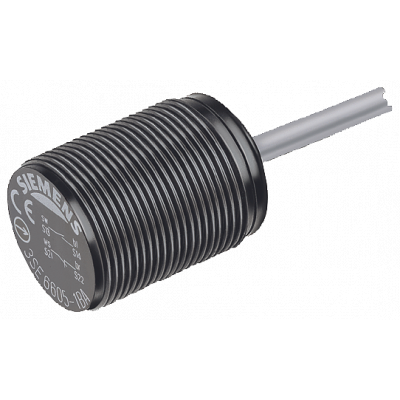

Magnetic switch contact block, round M30, contact blocks 1 NC/1 NO, 3 m cable
52.70€
Включая НДС
Артикул: 3SE6605-1BA
Выключатель с магнитным приводом Контактный блок, круглый M30 Контактные элементы 1 НЗ/1 НО с кабелем 3 м Magnetically operated switch SIRIUS 3SE66 for space-saving and manipulation-proof monitoring of a guard fence, cover or door.
The contactless coded devices are small and compact and are therefore suitable for use where space is very limited. They meet the highest safety requirements specified by PL e or SIL 3. Their non-wearing switching operations ensure a long service life.
They are available in various shapes and sizes. Different combinations of contact elements and cable lengths, versions with LEDs for fast diagnosis, and plug-in connectors for fast connection are available.
Spacers and various couplings with connection cables of various lengths are available as accessories.
Safety is a SIRIUS business.
Параметры
| Voltage type | AC/DC |
| Material housing | Plastic |
| Suitable for safety functions | Да |
| Coating housing | - |
| With status indication | - |
| Ambient temperature | -25 |
| Switching distance | - |
| Number of semiconductor outputs with signalling function | - |
| Number of contact energized outputs with signalling function | - |
| Number of protected semiconductor outputs | - |
| Number of protected contact energized outputs | - |
| Type of interface for safety communication | - |
| Type of electric connection | Cable |
| Type of switching output | - |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cylinder, screw-thread |
| Protected switch distance OFF | 15.0 |
| Protected switch distance ON | 5.0 |
| Max. output current at protected output | - |
| Mechanical mounting condition for sensor | - |
| Min. output current | - |
| With monitoring function downstream switching devices | - |
| Cross-/short circuit identification possible | Нет |
| Degree of protection (IP) | IP67 |
| Category according to EN 954-1 | 4 |
| Type of actuation | Magnet |
| Rated supply voltage at AC 50 Hz | - |
| Rated supply voltage at AC 60 Hz | - |
| Rated supply voltage at DC | - |
| Width sensor | - |
| Diameter sensor | 30.0 |
| Height of sensor | - |
| Length of sensor | 44.0 |
| Performance level acc. EN ISO 13849-1 | Level e |
| SIL according to IEC 61508 | 3 |
| Degree of protection (NEMA) | - |
