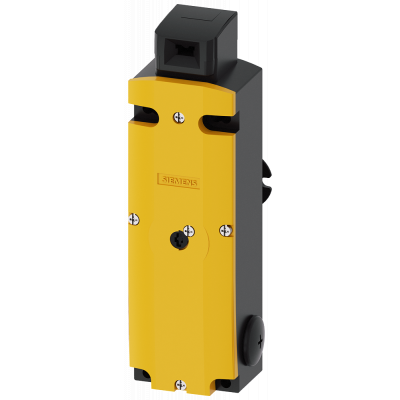

Safety position switch locking force 2600 N, 5 directions of approach, 3X

ПОЗИЦИОННЫЙ ВЫКЛЮЧАТЕЛЬ БЕЗОПАСНОСТИ С СОЛЕНОИДОМ, УСЛИЛИЕ БЛОКИРОВКИ 2600N,5 APPR. DIR. МЕТ. КОРПУС, 3X (M20X1.5) SPRING-LOCKED, EMERGENCY RELEASE ON REAR A. AUXILIARY RELEASE ON FRONT, НАПРЯЖЕНИЕ СОЛЕНОИДА 24V DC, MONITOR. OF ИСПОЛНИТЕЛЬНЫЙ ЭЛЕМЕНТ 2НЗ/1НО, КОНТРОЛЬ СОЛЕНОИДА 2NC/1НО Mechanical safety switches SIRIUS 3SE5 for position monitoring of moving protection equipment. They ensure that protective doors, covers or protective flaps/grilles are kept closed, for as long as a hazardous state exists. The actuator heads with screwless mounting can be rotated by 4x90 degrees. Five directions of approach are possible for the actuator, one of which is from the front. The contact blocks ensure an extremely high contact stability and can only be switched with separately coded actuators that guarantee greater protection against manipulation. LEDs conveniently indicate the current state of the device. The devices have worldwide approval (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met. The devices are available with spring or solenoid locking, in plastic with a locking force of 1300 N or in metal with a locking force of 2300 N. An extensive range of 3D-coded actuators is available to order. Some versions are optionally available with an LED status display. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio. The actuator is not included in the scope of delivery of the safety switches and must be ordered separately. Depending on the design, plug-in connectors and connection accessories are available. Safety is a SIRIUS business.

Параметры

Rated operation current Ie at AC-15, 230 V	-
Rated operation current Ie at DC-13, 230 V	-
Material housing	Metal
Suitable for safety functions	Да
Coating housing	Lacquered
With status indication	Нет
Type of switching contact	Slow-action switch
Type of interface for safety communication	None
Type of electric connection	Cable entry metrical
Explosion safety category for gas	None
Explosion safety category for dust	None
Construction type housing	Special construction
Degree of protection (IP)	IP65
Number of safety auxiliary contacts	4
Type of interface	None
Rated control supply voltage Us magnet drive at AC 50 Hz	-
Rated control supply voltage Us magnet drive at AC 60 Hz	-
Rated control supply voltage Us magnet drive at DC	24
Rated operation current Ie at AC-15, 125 V	-
Rated operation current Ie at AC-15, 24 V	6
Rated operation current Ie at DC-13, 125 V	0.55
Rated operation current Ie at DC-13, 24 V	3
Width sensor	54.0
With escape release	Нет
Height of sensor	43.5
Length of sensor	185.0
Ambient temperature during operating	-25
Guard locking force	2600
Number of contacts as normally closed contact	-
Number of contacts as normally open contact	-
Number of contacts as change-over contact	0
Degree of protection (NEMA)	-
With auxiliary release	-
Type of guard locking	Quiescent current principle
