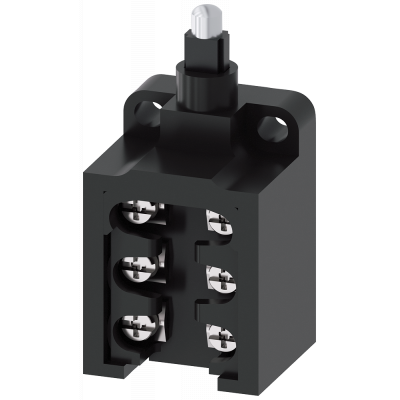

Position switch, plastic encl. 30 mm 2 NO/1 NC slow-action contacts
16.63€
Включая НДС
Артикул: 3SE5250-0PC05
ПОЗИЦИОННЫЙ ВЫКЛЮЧАТЕЛЬ SIRIUS, ПЛАСТИКОВЫЙ КОРПУСOPEN TYPE 30MM 2НО/1НЗ КОНТАКТЫ ПЛАВНОГО ХОДА (SLOW-ACTION) TEFLON ПЛУНЖЕР, IP10 Open-type position switches SIRIUS 3SE5 for use as auxiliary switches in cabinets, particularly for locations unaffected by humidity and dust.
Their compact construction makes the switches particularly suitable for use in confined conditions. Thanks to the robust metal plunger, they have greater abrasion resistance. Mounting and operating points according to EN 50047 The devices have worldwide approval (IEC, UL).
Versions are available with various contacts in snap-action, slow-action or slow-action with make-before-break versions.
Safety is a SIRIUS business.
Параметры
| Switching function | Slow-action switch |
| Rated operation current Ie at AC-15, 230 V | - |
| Rated operation current Ie at DC-13, 230 V | - |
| Material housing | Plastic |
| Suitable for safety functions | Да |
| Coating housing | Other |
| With status indication | Нет |
| Type of interface for safety communication | None |
| Type of electric connection | Cable entry metrical |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Other |
| Degree of protection (IP) | IP10 |
| Forced opening | Да |
| Number of safety auxiliary contacts | 1 |
| Type of control element | Plunger |
| Type of interface | None |
| Output electronic | Нет |
| Rated operation current Ie at AC-15, 125 V | - |
| Rated operation current Ie at AC-15, 24 V | 6 |
| Rated operation current Ie at DC-13, 125 V | 0.55 |
| Rated operation current Ie at DC-13, 24 V | 3 |
| Width sensor | 30.0 |
| Diameter sensor | - |
| Height of sensor | 27.0 |
| Length of sensor | 59.2 |
| Switching function latching | Нет |
| Ambient temperature during operating | -25 |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 2 |
| Number of contacts as change-over contact | 0 |
| Alignment of the control element | Roller cam straight |
| Degree of protection (NEMA) | - |
