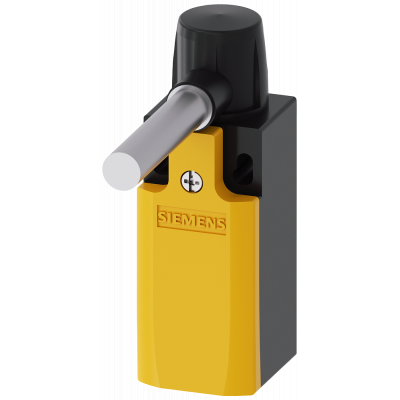

Hinge switch plastic enclosure, 31 mm, EN50047 1X

HINGED SWITCH MOLDED-P. HOUSING, 31MM, 1X(M20X1.5) WITH SOLID SHAFT D=10MM, ACTUATING ANGLE 10 DEG, SNAP-ACTION КОНТАКТЫ 2НЗ/1НО Mechanical safety hinge switches SIRIUS 3SE5 for position monitoring of moving protection equipment, particularly for use on hinged machine doors and flaps. The mechanical safety hinge switches belong to the modular system, because they have the same enclosures as the position switches. Shutdown and signaling takes place without a time delay at a small opening angle of 10°. The quick and easy wiring system enables a great deal of time to be saved during connection. Mounting and operating points according to EN 50047 and EN 50041. The devices are suitable for use in any climate and have worldwide approval (IEC, UL). Various enclosure sizes, with hollow or solid shafts, are available in plastic or metal. In addition, versions are available with an integrated hinge. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio. Actuator heads with hollow or solid shafts are available as accessories. Safety is a SIRIUS business.

Параметры

Rated operation current Ie at AC-15, 230 V	-
Rated operation current Ie at DC-13, 230 V	-
Material housing	Plastic
Suitable for safety functions	Да
Coating housing	Other
With status indication	Нет
Type of switching contact	Quick-break switch
Type of interface for safety communication	None
Type of electric connection	Cable entry metrical
Explosion safety category for gas	None
Explosion safety category for dust	None
Construction type housing	Cuboid
Degree of protection (IP)	IP65
Forced opening	Да
Number of safety auxiliary contacts	2
Type of control element	Full shaft
Type of interface	None
Rated operation current Ie at AC-15, 125 V	-
Rated operation current Ie at AC-15, 24 V	6
Rated operation current Ie at DC-13, 125 V	0.55
Rated operation current Ie at DC-13, 24 V	3
Width sensor	31.0
Height of sensor	83.5
Length of sensor	92.0
Number of contacts as normally closed contact	2
Number of contacts as normally open contact	1
Number of contacts as change-over contact	0
Degree of protection (NEMA)	-
