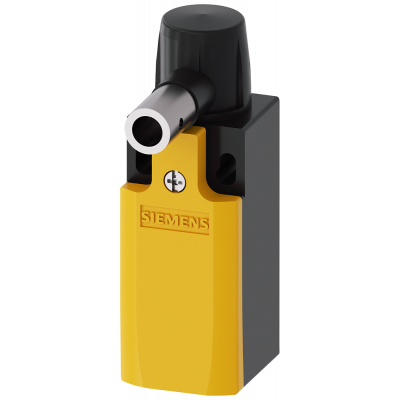

Hinge switch plastic enclosure, 31 mm, EN50047 1X
31.40€
Включая НДС
Артикул: 3SE5232-0LU21
HINGED SWITCH MOLDED-P. HOUSING, 31MM, 1X(M20X1.5) WITH HOLLOW SHAFT D=8MM, ACTUATING ANGLE 10 DEG, SNAP-ACTION КОНТАКТЫ 2НЗ/1НО Mechanical safety hinge switches SIRIUS 3SE5 for position monitoring of moving protection equipment, particularly for use on hinged machine doors and flaps.
The mechanical safety hinge switches belong to the modular system, because they have the same enclosures as the position switches. Shutdown and signaling takes place without a time delay at a small opening angle of 10°. The quick and easy wiring system enables a great deal of time to be saved during connection. Mounting and operating points according to EN 50047 and EN 50041. The devices are suitable for use in any climate and have worldwide approval (IEC, UL).
Various enclosure sizes, with hollow or solid shafts, are available in plastic or metal. In addition, versions are available with an integrated hinge. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio.
Actuator heads with hollow or solid shafts are available as accessories.
Safety is a SIRIUS business.
Параметры
| Rated operation current Ie at AC-15, 230 V | - |
| Rated operation current Ie at DC-13, 230 V | - |
| Material housing | Plastic |
| Suitable for safety functions | Да |
| Coating housing | Other |
| With status indication | Нет |
| Type of switching contact | Quick-break switch |
| Type of interface for safety communication | None |
| Type of electric connection | Cable entry metrical |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Degree of protection (IP) | IP65 |
| Forced opening | Да |
| Number of safety auxiliary contacts | 2 |
| Type of control element | Hollow shaft |
| Type of interface | None |
| Rated operation current Ie at AC-15, 125 V | - |
| Rated operation current Ie at AC-15, 24 V | 6 |
| Rated operation current Ie at DC-13, 125 V | 0.55 |
| Rated operation current Ie at DC-13, 24 V | 3 |
| Width sensor | 31.0 |
| Height of sensor | 52.8 |
| Length of sensor | 92.0 |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Degree of protection (NEMA) | - |
