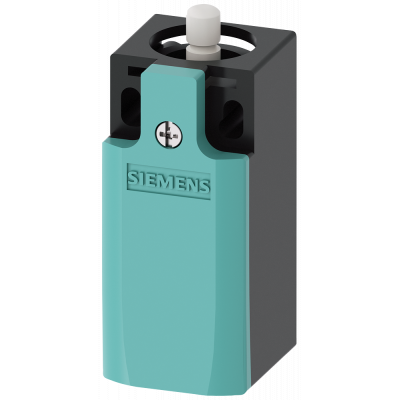

SIRIUS Position switch, metal 31 mm, acc. to EN50047 increased corrosion protection, G
31.98€
Включая НДС
Артикул: 3SE5212-0CC05-1AJ0
. PLASTIC 31MM, СООТВ. EN 50047 INCREASED CORROSION PROTECTION, ПОДКЛЮЧЕНИЕ УСТРОЙСТВА 1X (M20X1.5), 1NO/1NC QUICK ACTION CONTACTS ROUNDED ПЛУНЖЕР, FUNCTIONAL AT -40 DEGREES, SHOCK AND VIBRATION TEST ACC. TO EN61373, CATEGORY 1B Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment for extreme environmental conditions down to -40 °C, e.g. in wind energy plants, in the food and beverage industry, or for railway applications.
Due to their high degree of protection, the devices are suitable for use in extreme environmental conditions. They have increased corrosion protection, have been tested for shock and impact, and are approved worldwide (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met.
Various enclosure sizes are available in plastic or metal. In addition, versions are available with separate actuator or tumbler.
Depending on the design, various operating mechanisms and separate actuators are available.
Safety is a SIRIUS business.
Параметры
| Switching function | Quick-break switch |
| Rated operation current Ie at AC-15, 230 V | - |
| Rated operation current Ie at DC-13, 230 V | - |
| Material housing | Metal |
| Suitable for safety functions | Да |
| Coating housing | Lacquered |
| With status indication | Нет |
| Type of interface for safety communication | None |
| Type of electric connection | Cable entry metrical |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Degree of protection (IP) | IP66/IP67 |
| Forced opening | Да |
| Number of safety auxiliary contacts | 1 |
| Type of control element | Plunger |
| Type of interface | None |
| Output electronic | Нет |
| Rated operation current Ie at AC-15, 125 V | - |
| Rated operation current Ie at AC-15, 24 V | 6 |
| Rated operation current Ie at DC-13, 125 V | 0.55 |
| Rated operation current Ie at DC-13, 24 V | 3 |
| Width sensor | 31.0 |
| Diameter sensor | - |
| Height of sensor | 33.0 |
| Length of sensor | 75.7 |
| Switching function latching | Нет |
| Ambient temperature during operating | -40 |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Alignment of the control element | Roller cam straight |
| Degree of protection (NEMA) | - |
