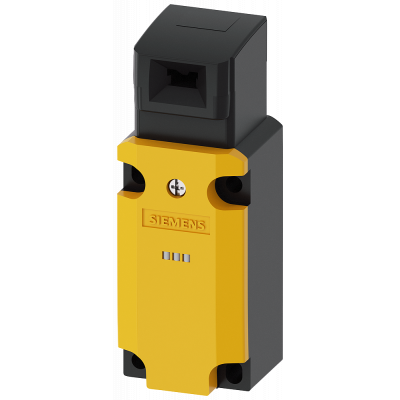

Safety position switch with separate actuator, 1 NO + 2 NC

"ПОЗИЦИОННЫЙ ВЫКЛЮЧАТЕЛЬ БЕЗОПАСНОСТИ C РАЗДЕЛЬНЫМ ИСПОЛНИТЕЛЬНЫМ ЭЛЕМЕНТОМ (АКТУАТОРОМ), ПЛАСТИКОВЫЙ КОРПУС, 40MM, 1X(M20X1.5), КОНТАКТЫ ПЛАВНОГО ХОДА (SLOW-ACTION) 1НО+2НЗ, 2 LEDS ЖЕЛТ./ЗЕЛЕН 230 V AC, 5 DIRECTIONS OF APPROACH, THE MATCHING РАЗДЕЛЬНЫЙ ИСПОЛНИТЕЛЬНЫЙ ЭЛЕМЕНТ (АКТУАТОР) 3SE5000-0AV0. ЗАКАЗЫВАЕТСЯ ОТДЕЛЬНО" Mechanical safety switches SIRIUS 3SE5 for position monitoring of moving protection equipment, e.g. doors, covers, or protective grilles. The actuator heads with screwless mounting can be rotated by 4x90 degrees. Five directions of approach are possible for the actuator, one of which is from the front. The contact blocks ensure an extremely high contact stability and can only be switched with separately coded actuators that guarantee greater protection against manipulation. LEDs indicate the current state of the device. Operating points and mounting in accordance with EN 50047 and EN 50041. The devices have worldwide approval (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met. The integrated ASIsafe electronics requires a low current input. Various enclosure sizes, with different contacts, are available in plastic or metal. An extensive range of 3D-coded actuators is available. Some versions are optionally available with an LED status display, M12 plug or locking device. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio. The actuator is not included in the scope of delivery of the safety switches and must be ordered separately. Plug-in connectors and other mounting/connection accessories are available as accessories. Safety is a SIRIUS business.

Параметры

Rated operation current Ie at AC-15, 230 V	4
Rated operation current Ie at DC-13, 230 V	-
Material housing	Plastic
Suitable for safety functions	Да
Coating housing	Other
With status indication	Да
Type of switching contact	Slow-action switch
Type of interface for safety communication	None
Type of electric connection	Cable entry metrical
Explosion safety category for gas	None
Explosion safety category for dust	None
Construction type housing	Cuboid
Degree of protection (IP)	IP66/IP67
Forced opening	Да
Number of safety auxiliary contacts	2
Type of interface	None
Rated operation current Ie at AC-15, 125 V	-
Rated operation current Ie at AC-15, 24 V	-
Rated operation current Ie at DC-13, 125 V	-
Rated operation current Ie at DC-13, 24 V	-
Width sensor	40.0
Height of sensor	37.8
Length of sensor	110.0
Ambient temperature during operating	-25
Number of contacts as normally closed contact	2
Number of contacts as normally open contact	1
Number of contacts as change-over contact	0
Degree of protection (NEMA)	12
