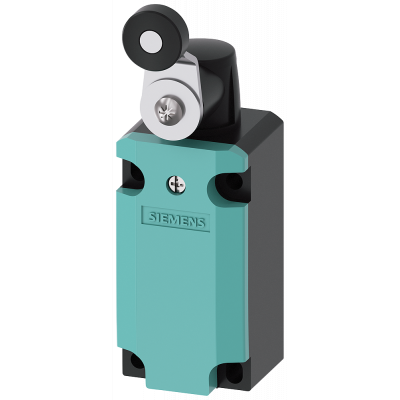

SIRIUS position switch, 1 NO/2 NC
32.30€
Включая НДС
Артикул: 3SE5132-0KJ01
ПОЗИЦИОННЫЙ ВЫКЛЮЧАТЕЛЬ SIRIUS, ПЛАСТИКОВЫЙ КОРПУС 40MM, ДВУСТОРНОННИЙ ПРИВОД (TWIST LEVER), В СООТВ. С EN50041, ПОДКЛЮЧЕНИЕ АППАРАТА 1X (M20X1.5), 1НО/2НЗ КОНТАКТЫ ПЛАВНОГО ХОДА (SLOW-ACTION) ПОВОРОТНЫЙ ИСПОЛНИТЕЛЬНЫЙ ЭЛЕМЕНТ RIGHT/LEFT РЕГ., МЕТ. РЫЧАГ ПРИВОДА 27MM ДЛИНА, И ПЛАСТИКОВЫЙ РОЛЛЕР 19MM Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
The modular design of the 3SE5 position switches permits a host of variants with a small number of bearing types. The wide variety of plug-in connectors and rollers meets almost all everyday requirements in industry. LEDs indicate the current state of the device. Thanks to quick-connect technology, the time required for connection can be considerably reduced. Operating points and mounting in accordance with EN 50047 and EN 50041. The devices have worldwide approval (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met. The integrated ASIsafe electronics requires a low current input.
Various enclosure sizes, with different contacts, are available in plastic or metal, or compact design. Some versions are optionally available with an LED status display and M12 plug. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio.
Depending on the design, actuator heads and plug-in connectors, as well as other mounting/connection accessories, are available.
Safety is a SIRIUS business.
Параметры
| Switching function | Slow-action switch |
| Rated operation current Ie at AC-15, 230 V | - |
| Rated operation current Ie at DC-13, 230 V | - |
| Material housing | Plastic |
| Suitable for safety functions | Да |
| Coating housing | Other |
| With status indication | Нет |
| Type of interface for safety communication | None |
| Type of electric connection | Cable entry metrical |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Degree of protection (IP) | IP66/IP67 |
| Forced opening | Да |
| Number of safety auxiliary contacts | 2 |
| Type of control element | Rotary lever |
| Type of interface | None |
| Output electronic | Нет |
| Rated operation current Ie at AC-15, 125 V | 6 |
| Rated operation current Ie at AC-15, 24 V | 6 |
| Rated operation current Ie at DC-13, 125 V | 0.55 |
| Rated operation current Ie at DC-13, 24 V | 3 |
| Width sensor | 40.0 |
| Diameter sensor | - |
| Height of sensor | 59.3 |
| Length of sensor | 127.5 |
| Switching function latching | Нет |
| Ambient temperature during operating | -25 |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Alignment of the control element | Roller cam straight |
| Degree of protection (NEMA) | 12 |
