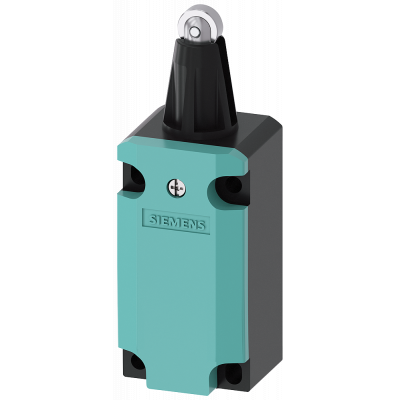

Position switch, metal, 40 mm, device connection, increased corrosion protection
56.03€
Включая НДС
Артикул: 3SE5112-0LD02-1AJ0
Позиционный выключатель с роликовым толкателем, металл, 40 мм, согласно EN 50041 повышенная защита от коррозии Подключение устройства 1 x (M20 x 1,5) 1 НО/2 НЗ, контакты мгновенного действия работоспособность при -40 °C Испытание на ударо- и вибропрочность согласно DIN EN 61373, категория 1В Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment for extreme environmental conditions down to -40 °C, e.g. in wind energy plants, in the food and beverage industry, or for railway applications.
Due to their high degree of protection, the devices are suitable for use in extreme environmental conditions. They have increased corrosion protection, have been tested for shock and impact, and are approved worldwide (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met.
Various enclosure sizes are available in plastic or metal. In addition, versions are available with separate actuator or tumbler.
Depending on the design, various operating mechanisms and separate actuators are available.
Safety is a SIRIUS business.
Параметры
| Switching function | Quick-break switch |
| Rated operation current Ie at AC-15, 230 V | - |
| Rated operation current Ie at DC-13, 230 V | - |
| Material housing | Metal |
| Suitable for safety functions | Да |
| Coating housing | Lacquered |
| With status indication | Нет |
| Type of interface for safety communication | None |
| Type of electric connection | Cable entry metrical |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Degree of protection (IP) | IP66/IP67 |
| Forced opening | Да |
| Number of safety auxiliary contacts | 2 |
| Type of control element | Roller cam |
| Type of interface | None |
| Output electronic | Нет |
| Rated operation current Ie at AC-15, 125 V | 6 |
| Rated operation current Ie at AC-15, 24 V | 6 |
| Rated operation current Ie at DC-13, 125 V | 0.55 |
| Rated operation current Ie at DC-13, 24 V | 3 |
| Width sensor | 40.0 |
| Diameter sensor | - |
| Height of sensor | 37.3 |
| Length of sensor | 116.3 |
| Switching function latching | Нет |
| Ambient temperature during operating | -40 |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Alignment of the control element | Roller cam straight |
| Degree of protection (NEMA) | 12 |
