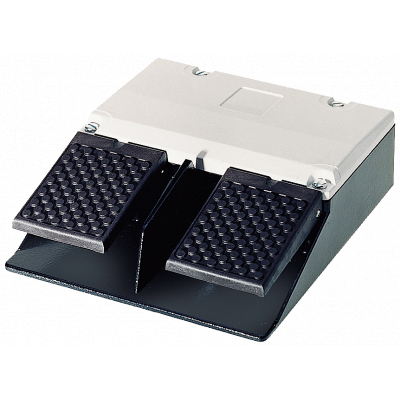

Momentary-contact foot switch, 2-pedal cable entry M25x1.5 IP65, 2 NO + 2 NC/2 NO + 2 NC
150.31€
Включая НДС
Артикул: 3SE2932-1AB20
FUSSTASTER, ZWEIPEDALIG LEITUNGSEINFUEHRUNG M20X1,5 IP65, 2НО+2НЗ/2НО+2НЗ OHNE SCHUTZHAUBE momentary-contact foot switch SIRIUS 3SE29 as an operation device on especially hazardous parts of the plant, e.g. on presses and punches, ideal where the hands are to be kept free.
Safety is a SIRIUS business.
Параметры
| Colour | Grey |
| Width | 193.0 |
| Height | 68.0 |
| Depth | 221.0 |
| Number of switch levels | 1 |
| Rated operation current Ie at AC-15, 230 V | 6 |
| Suitable for safety functions | Нет |
| Material | Metal |
| Type of command | - |
| With protection hood | Нет |
| With interlocking | Нет |
| Degree of protection (IP) | IP65 |
| With protective insulation | Нет |
| Switching function latching | Нет |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 2 |
| Number of contacts as change-over contact | - |
| Degree of protection (NEMA) | - |
