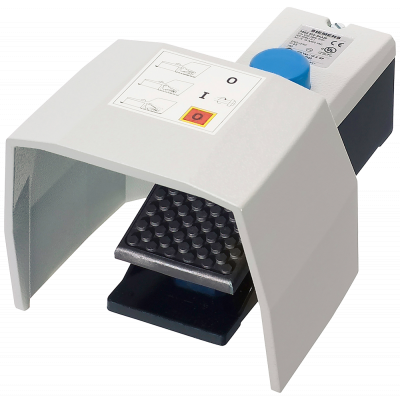

Safety momentary-contact foot switch 1-pedal, 2 NO + 2 NC, unlatched with protective cover, M20x1.5
216.83€
Включая НДС
Артикул: 3SE2924-3AA20
SICHERHEITS-FUSSTASTER EINPEDALIG, 2НО+2НЗ, ENTRIEGELT С SCHUTZHAUBE, IP65 M20X1,5 safety foot switch SIRIUS 3SE29 as an operation device on especially hazardous parts of the plant, e.g. on presses and punches, ideal where the hands are to be kept free.
Safety is a SIRIUS business.
Параметры
| Colour | Grey |
| Width | 156.0 |
| Height | 138.0 |
| Depth | 265.0 |
| Number of switch levels | 2 |
| Rated operation current Ie at AC-15, 230 V | 16 |
| Suitable for safety functions | Да |
| Material | Metal |
| Type of command | - |
| With protection hood | Да |
| With interlocking | Да |
| Degree of protection (IP) | IP65 |
| With protective insulation | Нет |
| Switching function latching | Нет |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 2 |
| Number of contacts as change-over contact | - |
| Degree of protection (NEMA) | - |
