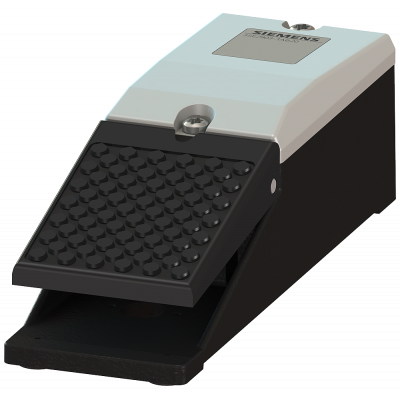

Momentary-contact foot switch single pedal cable entry metal encl. IP65, 1 NO + 1 NC
85.70€
Включая НДС
Артикул: 3SE2902-0AB20
НОЖНОЙ ВЫКЛЮЧАТЕЛЬ, ОДНА ПЕДАЛЬ, ВВОД КАБЕЛЯ 1X(M20X1,5) , МЕТАЛЛ. КОРПУС IP65, 1НО + 1НЗ БЕЗ ЗАЩИТНОЙ КРЫШКИ momentary-contact foot switch SIRIUS 3SE29 as an operation device on especially hazardous parts of the plant, e.g. on presses and punches, ideal where the hands are to be kept free.
Safety is a SIRIUS business.
Параметры
| Colour | Grey |
| Width | 70.0 |
| Height | 70.0 |
| Depth | 220.0 |
| Number of switch levels | 1 |
| Rated operation current Ie at AC-15, 230 V | 16 |
| Suitable for safety functions | Нет |
| Material | Metal |
| Type of command | - |
| With protection hood | Нет |
| With interlocking | Нет |
| Degree of protection (IP) | IP65 |
| With protective insulation | Нет |
| Switching function latching | Нет |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | - |
| Degree of protection (NEMA) | - |
