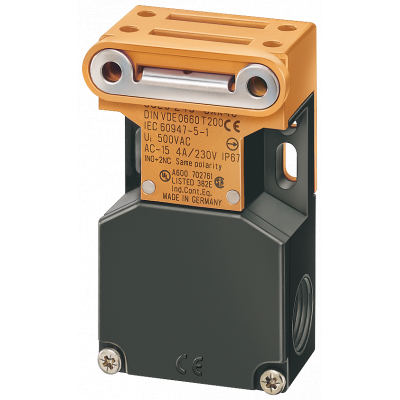

Safety position switch with separate actuator lateral and face-end
32.88€
Включая НДС
Артикул: 3SE2243-0XX30
ПОЗИЦИОННЫЙ ВЫКЛЮЧАТЕЛЬ БЕЗОПАСНОСТИ С ОТДЕЛЬНЫМ ИСП. МЕХАНИЗМОМ ПЛАСТИКОВЫЙ КОРПУС БОКОВОЕ И ФРОНТАЛЬНОЕ УПРАВЛЕНИЕ 1НO+2НЗ, С АВТОМАТИЧЕСКИМ ВЫБРОСОМ ПОСТАВКА БЕЗ ИСП. МЕХАНИЗМА safety position switch SIRIUS 3SE22 for tamper-proof monitoring of protective grilles, flaps or doors.
Thanks to coded actuators and 5 directions of approach, these can be flexibly mounted. When the doors are opened, the circuit is safely and reliably broken.
Safety is a SIRIUS business.
Параметры
| Rated operation current Ie at AC-15, 230 V | 4 |
| Rated operation current Ie at DC-13, 230 V | - |
| Material housing | Plastic |
| Suitable for safety functions | Да |
| Coating housing | Other |
| With status indication | Нет |
| Type of switching contact | Slow-action switch |
| Type of interface for safety communication | None |
| Type of electric connection | Cable entry metrical |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Other |
| Degree of protection (IP) | IP67 |
| Forced opening | - |
| Number of safety auxiliary contacts | 1 |
| Type of interface | None |
| Rated operation current Ie at AC-15, 125 V | - |
| Rated operation current Ie at AC-15, 24 V | - |
| Rated operation current Ie at DC-13, 125 V | - |
| Rated operation current Ie at DC-13, 24 V | 4 |
| Width sensor | 52.0 |
| Height of sensor | 36.0 |
| Length of sensor | 90.0 |
| Ambient temperature during operating | -30 |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Degree of protection (NEMA) | - |
