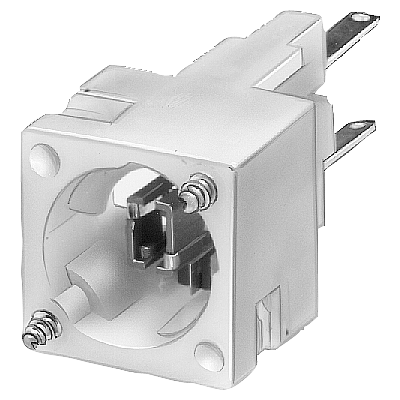

Lampholder W2x4.6D, incandescent lamp 24 V

ПАТРОН W2 X 4.60 С ЛАМПА НАКАЛИВАНИЯ 24V lampholder SIRIUS 3SB2 as accessories for 3SB2 command and signaling devices. The industry-standard 3SB2 pushbuttons and indicator lights have a modular design and are proven in practice. Thanks to their compact design, they are particularly suitable for small control panels. They are extremely functional and rugged, and comply with the IEC/EN 60947-5-1 and 60947-5-5 standards. They can be installed with a high packing density and without the need for any special tools. Versions available: Various voltage versions with flat connectors or solder pin connection. Extensive optional accessories (e.g. protective cap, labelling plates or handles) are available. 3SB2 - Space-saving, proven in practice and industry standard!

Параметры

Lamp holder	Wedge Base W 2x4.6d
Transformer integrated	Нет
With integrated voltage decreasing resistor	Нет
With integrated diode	Нет
Colour lamp	Clear
Lamp type	Incandescent lamp
Type of fastening	-
With light source	Да
Connection type auxiliary circuit	Flat plug-in connection
Rated voltage Ue at AC 50 Hz	5
Rated voltage Ue at AC 60 Hz	5
Rated voltage Ue at DC	5
Voltage type for actuating	AC/DC
