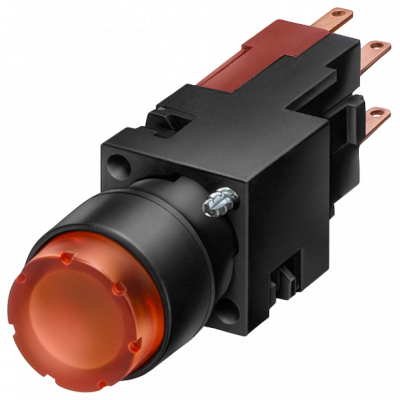

Illuminated pushbutton, 16 mm, round plastic, red

КОМПЛЕКТНОЕ УСТРОЙСТВО 16MM С ПОДСВЕТКОЙ КНОПКА С ВЫСТУПАЮЩЕЙ КНОПКОЙ, КРАСНАЯ, 1НЗ Illuminated pushbuttons SIRIUS 3SB2 for switching and controlling electrical loads. The industry-standard 3SB2 pushbuttons and indicator lights have a modular design and are proven in practice. Thanks to their compact design, they are particularly suitable for small control panels. They are extremely functional and rugged, and comply with the IEC/EN 60947-5-1 and 60947-5-5 standards. They can be installed with a high packing density and without the need for any special tools. Versions available: Several colors, illuminated/non-illuminated, with/without inscription, latching/momentary contact operation, and various button heights. Note: Complete unit, supplied with holder and contact block(s). 3SB2 - Space-saving, proven in practice and industry standard!

Параметры

Hole diameter	16.0
Colour button	Red
Suitable for illumination	Да
Number of command positions	1
Spring-return	Нет
Type of button	High
Colour front ring	Black
Type of electric connection	Flat plug-in connection
Width opening	19.0
Height opening	12.0
Degree of protection (IP)	IP65
Material front ring	Plastic
With front ring	Да
Construction type lens	-
Supply voltage lamp	-
Switching function latching	Нет
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	0
Number of contacts as change-over contact	0
Degree of protection (NEMA)	-
