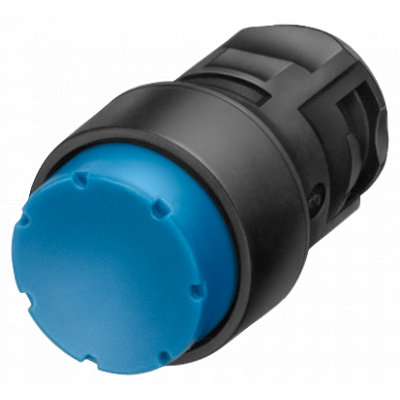

Illuminated pushbutton, 16 mm, round plastic, blue

ПЕРЕКЛЮЧАТЕЛЬ ДИАМ. 16MM С ПОДСВЕТКОЙ КНОПКА С ВЫСТУПАЮЩЕЙ КНОПКОЙ, ГОЛУБАЯ Illuminated pushbuttons SIRIUS 3SB2 for switching and controlling electrical loads. The industry-standard 3SB2 pushbuttons and indicator lights have a modular design and are proven in practice. Thanks to their compact design, they are particularly suitable for small control panels. They are extremely functional and rugged, and comply with the IEC/EN 60947-5-1 and 60947-5-5 standards. They can be installed with a high packing density and without the need for any special tools. Versions available: Several colors, illuminated/non-illuminated, with/without inscription, latching/momentary contact operation, and various button heights. Note: Please order individual device, holder and contact blocks separately. 3SB2 - Space-saving, proven in practice and industry standard!

Параметры

Hole diameter	16.0
Colour button	Blue
Suitable for illumination	Да
Number of command positions	1
Spring-return	Нет
Labelled	Нет
Type of button	Other
Colour front ring	Black
Degree of protection (IP), front side	IP65
Width opening	-
Height opening	-
With protective cover	Нет
Material front ring	Plastic
With front ring	Да
Construction type lens	Other
Switching function latching	Нет
Degree of protection (NEMA), front side	Other
