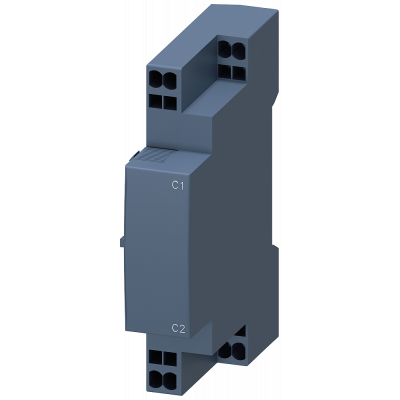

Shunt release, 90-110 V AC, 50/60 Hz, 100% ON period, 70-190 V AC
22.26€
Включая НДС
Артикул: 3RV2902-2DF0
НЕЗАВИСИМЫЙ РАСЦЕПИТЕЛЬ (РАСЦЕПИТЕЛЬ НАПРЯЖЕНИЯ), AC 90...110В, 50/60ГЦ, 100% ED, AC 70...190V, 50/60ГЦ, 5СЕК. ED, DC 70...190V, 5СЕК. ED, ПРУЖИННЫЕ КЛЕММЫ, ДЛЯ АВТОМАТИЧЕСКОГО ВЫКЛЮЧАТЕЛЯ 3RV2 Simple, efficient and always up to date - SIRIUS modular system.
Параметры
| Suitable for off-load switch | Нет |
| Suitable for overload relay | Нет |
| Type of electric connection | Spring clamp connection |
| Rated control supply voltage Us at AC 50HZ | 90 |
| Rated control supply voltage Us at AC 60HZ | 90 |
| Rated control supply voltage Us at DC | - |
| Suitable for motor safety switch | Нет |
| Suitable for power circuit breaker | Нет |
| Initial value of the undelayed short-circuit release - setting range | - |
| End value adjustment range undelayed short-circuit release | - |
| Voltage type for actuating | AC |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | - |
| Number of contacts as change-over contact | 0 |
