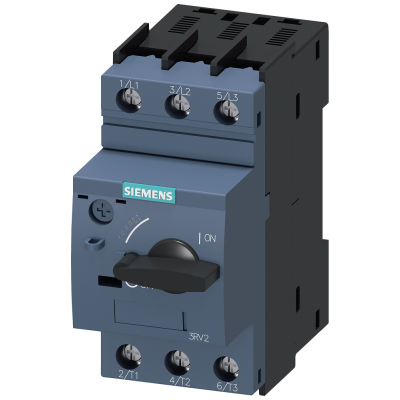

Special type circuit breaker, size S0, for transformer protection A-release 14-20 A

ВЫКЛЮЧАТЕЛЬ АВТОМАТИЧЕСКИЙ СПЕЦИАЛЬНОГО ИСПОЛНЕНИЯ ТИПОРАЗМЕР S0, ДЛЯ ЗАЩИТЫ ТРАНСФОРМАТОРА, РЕГ. РАСЦЕПИТЕЛЬ ПЕРЕГРУЗКИ 13... 20A, УСТАВКА РАСЦЕПИТЕЛЯ МАКСИМАЛЬНОГО ТОКА325A, ВИНТОВЫЕ КЛЕММЫ, СТАНДАРТНАЯ КОММУТАЦИОННАЯ СПОСОБНОСТЬ AMBIENT TEMPERATURE -50 DEGREES C 500 SWITCHING CYCLES Circuit breaker SIRIUS 3RV2 For transformer protection for the reliable protection of transformers against short-circuit and overload. Thanks to their low heat loss, the compact and climate-resistant circuit breakers are optimized for use in load feeders, and also for IE3/IE4 motors, of course, and equally for the switching of direct current. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course. Device versions are available for motor protection (also with overload relay function), plant protection, short-circuit protection of starter combinations, transformer protection, as main and EMERGENCY OFF switches and for use in IT networks. They are available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection, and optionally with integral auxiliary switch. The comprehensive range of accessories, such as auxiliary switches, auxiliary releases, signaling switches etc. is standardized for all sizes. The use of different energy infeed options, such as the associated SIRIUS 3RV29 infeed system, considerably reduces the main circuit wiring. The 3RV2 circuit breakers replace the well-proven 3RV1 series. Simple, efficient and always up to date - SIRIUS modular system.

Параметры

Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated permanent current Iu	20.0
Number of poles	3
Overload release current setting	13
Number of auxiliary contacts as change-over contact	0
Rated voltage	-
Degree of protection (IP)	IP20
Position of connection for main current circuit	Other
Motor drive integrated	Нет
Type of electrical connection of main circuit	Screw connection
Type of control element	Toggle
With switched-off indicator	Нет
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz	55.0
Adjustment range short-term delayed short-circuit release	-
Adjustment range undelayed short-circuit release	325
Suitable for DIN rail (top hat rail) mounting	Нет
Integrated earth fault protection	Нет
Motor drive optional	Нет
With under voltage release	Нет
Device construction	Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional	-
Complete device with protection unit	-
