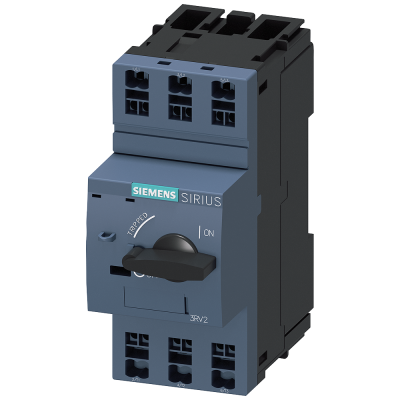

Circuit breaker, S00 for starter comb. 8 A, short-circuit release 104 A

ВЫКЛЮЧАТЕЛЬ АВТОМАТИЧЕСКИЙ ДЛЯ ЗАЩИТЫ ПУСКОВЫХ СБОРОК ОТ ТОКОВ КЗ, БЕЗ РАСЦЕПИТЕЛЯ ПЕРЕГРУЗКИ, ТИПОРАЗМЕР S00, НОМ. РАБ. ТОК 8A, УСТАВКА РАСЦЕПИТЕЛЯ МАКСИМАЛЬНОГО ТОКА 104A, ПРУЖИННЫЕ КЛЕММЫ, СТАНДАРТНАЯ КОММУТАЦИОННАЯ СТОЙКОСТЬ Circuit breaker SIRIUS 3RV2 For starter combinations for the reliable protection of the loads in the event of a short-circuit and for the safe isolation from the network. Thanks to their low heat loss, the compact and climate-resistant circuit breakers are optimized for use in load feeders, and also for IE3/IE4 motors, of course, and equally for the switching of direct current. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course. Device versions are available for motor protection (also with overload relay function), plant protection, short-circuit protection of starter combinations, transformer protection, as main and EMERGENCY OFF switches and for use in IT networks. They are available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection, and optionally with integral auxiliary switch. The comprehensive range of accessories, such as auxiliary switches, auxiliary releases, signaling switches etc. is standardized for all sizes. The use of different energy infeed options, such as the associated SIRIUS 3RV29 infeed system, considerably reduces the main circuit wiring. The 3RV2 circuit breakers replace the well-proven 3RV1 series. Simple, efficient and always up to date - SIRIUS modular system.

Параметры

Width	45.0
Height	106.0
Depth	97.0
Rated operation power at AC-3, 400 V	3.0
With integrated auxiliary switch	Нет
Rated permanent current Iu	8.0
With integrated under voltage release	Нет
Number of poles	3
Rated operating voltage	690
Overload release current setting	-
Degree of protection (IP)	IP20
With thermal protection	Нет
Type of electrical connection of main circuit	Spring clamp connection
Type of control element	Turn button
Switch off technique	Magnetic
Rated operation power at AC-3, 230 V	1.5
Rated short-circuit breaking capacity lcu at 400 V, AC	100.0
Adjustment range undelayed short-circuit release	104
Phase failure sensitive	Нет
Device construction	Built-in device fixed built-in technique
