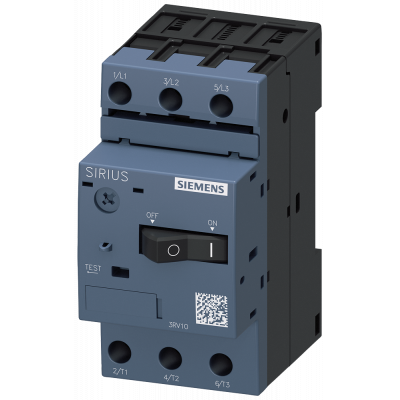

Circuit breaker, S00, motor protection, Class 10, A-release 0.28-0.4 A, short-circuit release 5.2 A

ВЫКЛЮЧАТЕЛЬ АВТОМАТИЧЕСКИЙ, 0.28...0.40A, N-РАСЦЕПИТЕЛЬ 4.8 A, ТИПОРАЗМЕР S00, ДЛЯ ЗАЩИТЫ ЭЛЕКТРОДВИГАТЕЛЯ, КЛАСС 10, ВИНТОВЫЕ КЛЕММЫ Circuit breaker SIRIUS 3RV1 For motor protection for the reliable shutdown in the event of a short-circuit and for protecting the loads and system against overload, and for safe isolation of the system from the network. Thanks to their low heat loss, the compact and climate-resistant circuit breakers are optimized for use in load feeders, and also for IE3/IE4 motors, of course, and equally for the switching of direct current. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course. Device versions are available for motor protection, as main and EMERGENCY OFF switches and for use in IT networks. They are available with screw terminals and optionally with an integrated auxiliary switch. The comprehensive range of accessories, such as auxiliary switches, auxiliary releases etc. is standardized for all sizes. The use of different energy infeed options, such as the associated SIRIUS 3RV29 infeed system, considerably reduces the main circuit wiring. Simple, efficient and always up to date - SIRIUS modular system.

Параметры

Width	45.0
Height	90.0
Depth	75.0
Rated operation power at AC-3, 400 V	0.09
With integrated auxiliary switch	Нет
Rated permanent current Iu	0.4
With integrated under voltage release	Нет
Number of poles	3
Rated operating voltage	690
Overload release current setting	0.28
Degree of protection (IP)	IP20
With thermal protection	Да
Type of electrical connection of main circuit	Screw connection
Type of control element	Rocker lever
Switch off technique	Magnetic
Rated operation power at AC-3, 230 V	0.06
Rated short-circuit breaking capacity lcu at 400 V, AC	100.0
Adjustment range undelayed short-circuit release	5.2
Phase failure sensitive	Да
Device construction	Built-in device fixed built-in technique
