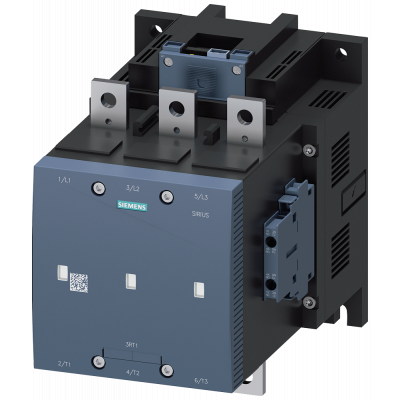

Vacuum contactor, AC-3, 500 A/250 kW/400 V, 3-pole, 21-27.3 V AC/DC, PLC-IN optional, 2 NO+2 NC, connection bar/screw terminal

ВАКУУМНЫЙ КОНТАКТОР, 250КВТ/400V/AC-3, AC/DC-НОМИНАЛЬНОЕ ПИТАЮЩЕЕ НАПРЯЖЕНИЕ УПРАВЛЕНИЯ UC 21-27, 3V БЛОК-КОНТАКТЫ 2НО+2НЗ 3-Х ПОЛЮСНЫЙ, ТИПОРАЗМЕР S12 ШИННОЕ ПРИСОЕДИНЕНИЕ ПРИВОД: ЭЛЕКТРОННЫЙ, С ИНТЕРФЕЙСОМ КОНТРОЛЛЕРА DC24V Vacuum contactor SIRIUS 3RT12 for switching motors. The 3RT12 vacuum contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance and high contact reliability despite their compact design. The vacuum contactors are also characterized by their particularly high switching endurance. They are therefore particularly well suited to frequent switching in jog mode. They can be combined with a variety of other components in the load feeder. The contactors offer the best connection to the automation level for every application (direct or via PLC input). Pre-installed auxiliary switches reduce the complexity of your design. The 3RT1 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready. They are available in various sizes and in a wide performance range. They have a DC wide voltage range and a PLC control input. The devices can be connected in the main circuit by means of rails or box terminals. For the auxiliary and control circuit they are also available with spring-loaded terminals for fast, maintenance-free and vibration-proof connection. A wide range of accessories is available for these contactors, such as wiring kits that considerably reduce wiring outlay, auxiliary switches or terminal covers. Simple, efficient and always up to date - SIRIUS modular system.

Параметры

Modular version	Да
Rated operation power at AC-3, 400 V	250.0
Number of main contacts as normally open contact	3
Number of normally closed contacts as main contact	-
Number of auxiliary contacts as normally open contact	2
Number of auxiliary contacts as normally closed contact	2
Rated operation current Ie at AC-3, 400 V	500
Rated operation current Ie at AC-1, 400 V	610
Rated control supply voltage Us at AC 50HZ	21.0
Rated control supply voltage Us at AC 60HZ	21.0
Rated control supply voltage Us at DC	21
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Rated operation current Ie at AC-4, 400 V	430
Rated operation power at AC-4, 400 V	250.0
Rated operation power NEMA	294.1995
