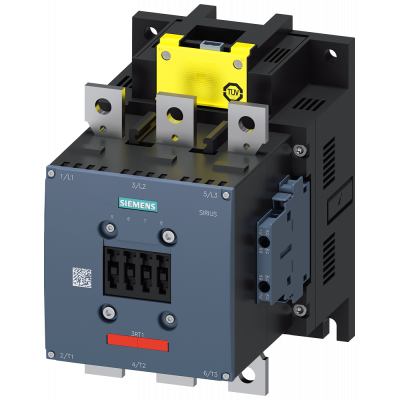

Contactor, AC-3, 225 A/110 kW/400 V, 3-pole, 200-277 V AC/DC, F-PLC-IN, 2 NO+2 NC, connection bar/screw terminal

Силовой контактор, AC-3 225 A, 110 кВт/400 В катушка AC 50/60 Гц и DC 200-277 В x (0,8-1,1) вход F-SPS 24 В DC 3-пол., типоразмер S10 вспомогательные контакты 2 НО + 2 НЗ, несъемные, главная линия: шина, управляющая и вспомогательная цепь: винтовая клемма Power contactor SIRIUS 3RT1 for switching high-power motors, especially designed and certified for simple set-up of safety-oriented applications up to SIL CL 3. The 3RT1 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance and high contact reliability despite their compact design. They can be combined with a variety of other components in the load feeder. The contactors feature a fail-safe PLC input to provide a suitable connection to the controller for safety-oriented applications. Pre-installed auxiliary switches reduce the complexity of your design. The 3RT1 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready. The 3RT contactors with fail-safe control are available in various sizes and in a wide performance range. They have an AC/DC wide voltage range and a PLC control input. The devices can be connected in the main circuit by means of rails or box terminals. A wide range of accessories is available for these contactors, such as wiring kits that considerably reduce wiring outlay, auxiliary switches or terminal covers. Simple, efficient and always up to date - SIRIUS modular system.

Параметры

Modular version	Да
Rated operation power at AC-3, 400 V	110.0
Number of main contacts as normally open contact	3
Number of normally closed contacts as main contact	-
Number of auxiliary contacts as normally open contact	2
Number of auxiliary contacts as normally closed contact	2
Rated operation current Ie at AC-3, 400 V	225
Rated operation current Ie at AC-1, 400 V	275
Rated control supply voltage Us at AC 50HZ	200.0
Rated control supply voltage Us at AC 60HZ	200.0
Rated control supply voltage Us at DC	200
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Rated operation current Ie at AC-4, 400 V	195
Rated operation power at AC-4, 400 V	-
Rated operation power NEMA	110.3248125
