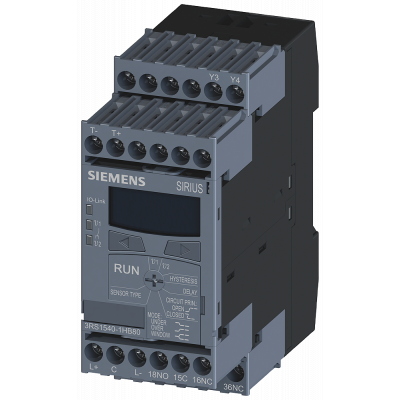

Temperature monitoring relay for IO-Link thermocouple

Реле контроля температуры для IO-Link термоэлемент J,K,T,E,N,R,S,B 2 предельных значения от -99 °C до 1800 °C 3 x 1 Вт, ширина 45 мм Винтовой зажим Temperature monitoring relay SIRIUS 3RS15 for the measurement of temperatures in solid, liquid and gaseous media, e.g. for open and closed loop control of processes or for protecting motors and plants against excessive temperatures. The devices are easy to operate without any complicated menu system. The temperature is indicated on a 3-digit LED display. The relays with two threshold values are suitable for all common types of sensor, such as PT100, PT1000, KTY, NTC, thermocouple. The family of 3RS temperature monitoring relays consists of analog and digital adjustable relays for the connection of between one and three sensors (resistance sensors or thermocouples). They are available with screw-type or spring-type terminals. The temperature can be displayed optionally in either °C or °F. Likewise, versions are available with communication via IO-Link. Labels, push-in lugs and sealable covers are available as accessories. SIRIUS relays - one range for every application.

Параметры

Width	45.0
Height	106.0
Depth	91.0
With detachable clamps	Да
Error registration possible	Да
Number of measuring circuits	1
External reset possible	Да
Type of electric connection	Screw connection
Rated control supply voltage Us at AC 50HZ	-
Rated control supply voltage Us at AC 60HZ	-
Rated control supply voltage Us at DC	18
Voltage type for actuating	DC
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Number of contacts as change-over contact	3
Temperature measuring range	-
Resistance measuring range	-
