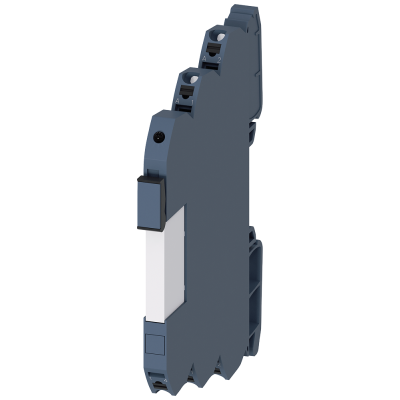

ВЫХОДНОЕ СОГЛАСУЮЩЕЕ УСТРОЙСТВО С ВТЫЧНЫМ РЕЛЕЙНЫМ МОДУЛЕМ, 1 П КОНТАКТ С ТВЁРДЫМ ЗОЛОЧЕНИЕМ, НОМ. ПИТАЮЩЕЕ НАПРЯЖЕНИЕ УПРАВЛЕНИЯ 230В AC/DC, ШИРИНА 6

ВЫХОДНОЕ СОГЛАСУЮЩЕЕ УСТРОЙСТВО С ВТЫЧНЫМ РЕЛЕЙНЫМ МОДУЛЕМ, 1 П КОНТАКТ С ТВЁРДЫМ ЗОЛОЧЕНИЕМ, НОМ. ПИТАЮЩЕЕ НАПРЯЖЕНИЕ УПРАВЛЕНИЯ 230В AC/DC, ШИРИНА 6. 3RQ31182AF01
27.18€
Включая НДС
Артикул: 3RQ3118-2AF01
ВЫХОДНОЕ СОГЛАСУЮЩЕЕ УСТРОЙСТВО С ВТЫЧНЫМ РЕЛЕЙНЫМ МОДУЛЕМ, 1 П КОНТАКТ С ТВЁРДЫМ ЗОЛОЧЕНИЕМ, НОМ. ПИТАЮЩЕЕ НАПРЯЖЕНИЕ УПРАВЛЕНИЯ 230В AC/DC, ШИРИНА 6.2 MM, ПРУЖИННЫЕ КЛЕММЫ (PUSH IN) Coupling relays with plug-in relay SIRIUS 3RQ3 for electrical isolation, amplification and signal adjustment between the controller and I/O. Very narrow and compact. Fast and error-free wiring due to the consistent bridging possibilities for all potentials. Several inscription areas available for identification of terminals and devices. Available as coupling relay with relay output, with semiconductor output or with plug-in relay, with various operating voltages and output currents, and with hard gold-plated contacts or with manual/automatic switchover. Standardized accessories for all device versions, such as connecting combs, clip-on labels or galvanic isolation plates simplify the selection and the stock-keeping. The 3RQ3 coupling relays replace the well-proven 3TX70 series. SIRIUS relays - one range for every application.

Параметры

Nominal current -
Width 6.2
Height 93.0
Depth 76.0
With detachable clamps Нет
Drive, polarization Polarized
Drive, switching attitude Mono stable
With forced-guided contacts Нет
Type of switch contact Simple contact
Complete with socket Да
Type of electric connection -
Rated control supply voltage Us at AC 50HZ -
Rated control supply voltage Us at AC 60HZ -
Rated control supply voltage Us at DC -
Degree of protection (IP) IP20
With LED indication Да
Voltage type for actuating AC/DC
Number of contacts as normally closed contact -
Number of contacts as normally open contact -
Number of contacts as change-over contact 1
