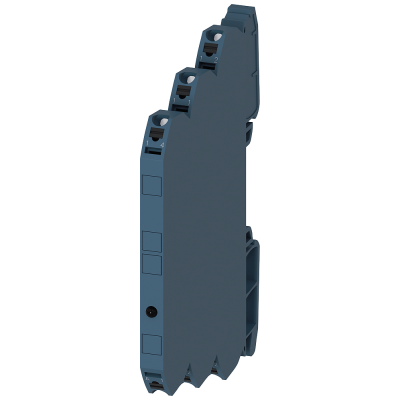

Input coupling link, relay coupler, 1 CO, hard gold-plated contacts 115 V AC/DC
33.01€
Включая НДС
Артикул: 3RQ3038-2AE01
ВХОДНОЕ СОГЛАСУЮЩЕЕ РЕЛЕЙНОЕ УСТРОЙСТВО, 1 П КОНТАКТ С ТВЁРДЫМ ЗОЛОЧЕНИЕМ, НОМ. ПИТАЮЩЕЕ НАПРЯЖЕНИЕ УПРАВЛЕНИЯ 115В AC/DC, ШИРИНА 6.2MM, ВИНТОВЫЕ КЛЕММЫ Coupling relays with relay output (not plug-in) SIRIUS 3RQ3 for electrical isolation, amplification and signal adjustment between the controller and I/O.
Very narrow and compact. Fast and error-free wiring due to the consistent bridging possibilities for all potentials. Several inscription areas available for identification of terminals and devices.
Available as coupling relay with relay output, with semiconductor output or with plug-in relay, with various operating voltages and output currents, and with hard gold-plated contacts or with manual/automatic switchover.
Standardized accessories for all device versions, such as connecting combs, clip-on labels or galvanic isolation plates simplify the selection and the stock-keeping.
The 3RQ3 coupling relays replace the well-proven 3TX70 series.
SIRIUS relays - one range for every application.
Параметры
| Nominal current | - |
| Width | 6.2 |
| Height | 93.0 |
| Depth | 72.5 |
| With detachable clamps | Нет |
| Drive, polarization | Polarized |
| Drive, switching attitude | Mono stable |
| With forced-guided contacts | Нет |
| Type of switch contact | Simple contact |
| Complete with socket | Нет |
| Type of electric connection | - |
| Rated control supply voltage Us at AC 50HZ | - |
| Rated control supply voltage Us at AC 60HZ | - |
| Rated control supply voltage Us at DC | - |
| Degree of protection (IP) | IP20 |
| With LED indication | Да |
| Voltage type for actuating | AC/DC |
| Number of contacts as normally closed contact | - |
| Number of contacts as normally open contact | - |
| Number of contacts as change-over contact | 1 |
