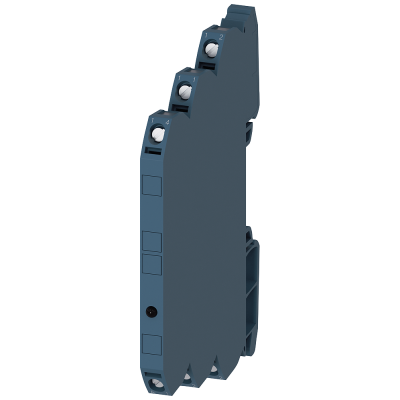

Input coupling link, relay coupler, 1 CO

ВХОДНОЕ СОГЛАСУЮЩЕЕ РЕЛЕЙНОЕ УСТРОЙСТВО, 1 П КОНТАКТ, НОМ. ПИТАЮЩЕЕ НАПРЯЖЕНИЕ УПРАВЛЕНИЯ 24В AC/DC, ШИРИНА 6.2MM, ВИНТОВЫЕ КЛЕММЫ Coupling relays with relay output (not plug-in) SIRIUS 3RQ3 for electrical isolation, amplification and signal adjustment between the controller and I/O. Very narrow and compact. Fast and error-free wiring due to the consistent bridging possibilities for all potentials. Several inscription areas available for identification of terminals and devices. Available as coupling relay with relay output, with semiconductor output or with plug-in relay, with various operating voltages and output currents, and with hard gold-plated contacts or with manual/automatic switchover. Standardized accessories for all device versions, such as connecting combs, clip-on labels or galvanic isolation plates simplify the selection and the stock-keeping. The 3RQ3 coupling relays replace the well-proven 3TX70 series. SIRIUS relays - one range for every application.

Параметры

Nominal current	-
Width	6.2
Height	93.0
Depth	72.5
With detachable clamps	Нет
Drive, polarization	Polarized
Drive, switching attitude	Mono stable
With forced-guided contacts	Нет
Type of switch contact	Simple contact
Complete with socket	Нет
Type of electric connection	Screw connection
Rated control supply voltage Us at AC 50HZ	-
Rated control supply voltage Us at AC 60HZ	-
Rated control supply voltage Us at DC	-
Degree of protection (IP)	IP20
With LED indication	Да
Voltage type for actuating	AC/DC
Number of contacts as normally closed contact	-
Number of contacts as normally open contact	-
Number of contacts as change-over contact	1
