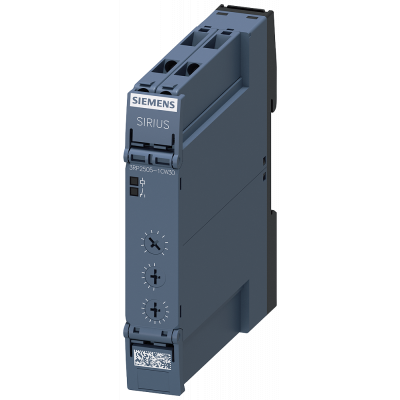

Timing relay, 1 NO, 13 functions, 0.05s-100h, 12-240 V AC/DC, screw terminal
88.62€
Включая НДС
Артикул: 3RP2505-1CW30
РЕЛЕ ВРЕМЕНИ, МНОГОФУНКЦИОНАЛЬНОЕ, ПП ВЫХОД, 13 ФУНКЦИЙ, 15 ДИАПАЗОНОВ УСТАВОК ВРЕМЕНИ, (1, 3, 10, 30, 100), (С./МИН./Ч.),12 … 240 В AC/DC (AC ПРИ 50/60ГЦ), ИНДИКАЦИЯ СВЕТОДИОДАМИ, ВИНТОВЫЕ КЛЕММЫ timing relay SIRIUS 3RP25, 13 functions, for all switching operations involving time delays in control, starting, protection and regulation circuits.
Wide range of applications due to wide variety of functions within a very small space. Can be used worldwide thanks to international approvals and wide range of voltages. The innovative enclosure concept in an industrial design offers labeled cover caps, removable terminals and much more.
Available as single or multifunctional time relay with semi-conductor output or as electromechanical relay with or without positively driven operation, in each case with various connection technologies.
The scope of supply already includes adhesive films for marking of functions.
The 3RP25 timing relays replace the well-proven 3RP15 series.
SIRIUS relays - one range for every application.
Параметры
| Nominal current | - |
| Width | 17.5 |
| Height | 100.0 |
| Depth | 90.0 |
| Suitable for front mounting | Нет |
| With plug-in socket | Да |
| Remote operation possible | Нет |
| Suitable for remote control | Нет |
| Function flashing, starting with pause, fixed time | Да |
| Function flashing, starting with pulse, fixed time | Да |
| Clock function, starting with pause, variable | Нет |
| Clock function, starting with pulse, variable | Нет |
| With semiconductor output | Да |
| Function delay-on energization | Да |
| Function floating contact on energization | Да |
| Function star-delta | Нет |
| Time range | 0.05 |
| Function delay on de-energization | Нет |
| Function floating contact on de-energization | Да |
| Function pulse shaping | Да |
| Type of electric connection | Screw connection |
| Rated control supply voltage Us at AC 50HZ | 12 |
| Rated control supply voltage Us at AC 60HZ | 12 |
| Rated control supply voltage Us at DC | 12 |
| Number of outputs, undelayed, normally closed contact | 0 |
| Number of outputs, undelayed, normally open contact | 0 |
| Number of outputs, undelayed, change-over contact | 0 |
| Number of outputs, delayed, normally closed contact | 0 |
| Number of outputs, delayed, normally open contact | 1 |
| Number of outputs, delayed, change-over contact | 0 |
| Pluggable on auxiliary contact block | Нет |
| Outputs, reversible delayed/undelayed | Нет |
| Suitable for DIN rail (top hat rail) mounting | Нет |
| Voltage type for actuating | AC/DC |
