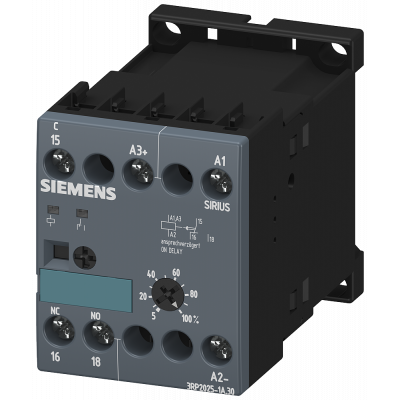

Timing relay, electronic, ON-delay 1 CO, 24 V AC/DC, 100-127 V AC
54.22€
Включая НДС
Артикул: 3RP2025-1AQ30
ЭЛЕКТРОННОЕ РЕЛЕ ВРЕМЕНИ ЗАДЕРЖКА НА ВКЛЮЧЕНИЕ 1 ПЕР. КОНТАКТ AC/DC 24V, AC 100 ДО 127V 0, 05S ДО 100H ШИРИНА УСТАНОВКИ 45MM ВИНТОВЫЕ КЛЕММЫ timing relay SIRIUS 3RP20, slow-operating, for various switching operations involving time delays in control, starting, protection and regulation circuits, e.g. for cascaded motor startup.
Wide range of applications due to variety of functions within a very small space. Can be used worldwide thanks to international approvals and wide range of voltages.
The 3RP time relays are available as single or multifunctional time relays with semi-conductor output or as electromechanical relay with or without positively driven operation, with various connection technologies in each case.
SIRIUS relays - one range for every application.
Параметры
| Nominal current | - |
| Width | 45.0 |
| Height | 57.0 |
| Depth | 73.0 |
| Suitable for front mounting | Нет |
| With plug-in socket | Нет |
| Remote operation possible | Нет |
| Suitable for remote control | Нет |
| Function flashing, starting with pause, fixed time | Нет |
| Function flashing, starting with pulse, fixed time | Нет |
| Clock function, starting with pause, variable | Нет |
| Clock function, starting with pulse, variable | Нет |
| With semiconductor output | Нет |
| Function delay-on energization | Да |
| Function floating contact on energization | Нет |
| Function star-delta | Нет |
| Time range | 0.05 |
| Function delay on de-energization | Нет |
| Function floating contact on de-energization | Нет |
| Function pulse shaping | Нет |
| Type of electric connection | Screw connection |
| Rated control supply voltage Us at AC 50HZ | 24 |
| Rated control supply voltage Us at AC 60HZ | 100 |
| Rated control supply voltage Us at DC | 24 |
| Number of outputs, undelayed, normally closed contact | 0 |
| Number of outputs, undelayed, normally open contact | 0 |
| Number of outputs, undelayed, change-over contact | 0 |
| Number of outputs, delayed, normally closed contact | 0 |
| Number of outputs, delayed, normally open contact | 0 |
| Number of outputs, delayed, change-over contact | 1 |
| Pluggable on auxiliary contact block | Нет |
| Outputs, reversible delayed/undelayed | - |
| Suitable for DIN rail (top hat rail) mounting | Нет |
| Voltage type for actuating | AC/DC |
