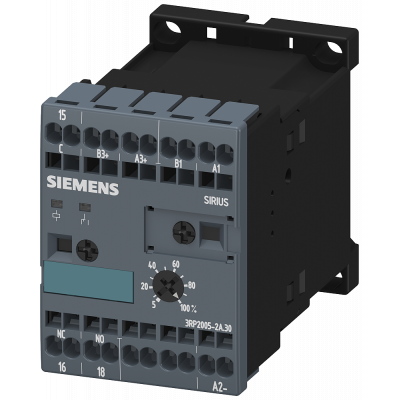

Timing relay, electronic, multi-function, 8 functions 1 CO, 24 V AC/DC, 100-127 V AC
85.99€
Включая НДС
Артикул: 3RP2005-2AQ30
ЭЛЕКТРОННОЕ РЕЛЕ ВРЕМЕНИ МУЛЬТИФУНКЦИОНАЛЬНОЕ, 8 ФУНКЦИЙ 1 ПЕР. КОНТАКТ AC/DC 24V, AC 100 ДО 127V 0, 05S ДО 100H ШИРИНА УСТАНОВКИ 45MM ПРУЖИННЫЕ КЛЕММЫ (CAGE CLAMP) timing relay SIRIUS 3RP20, Multifunctional, for all switching operations involving time delays in control, starting, protection and regulation circuits.
Wide range of applications due to variety of functions within a very small space. Can be used worldwide thanks to international approvals and wide range of voltages.
The 3RP time relays are available as single or multifunctional time relays with semi-conductor output or as electromechanical relay with or without positively driven operation, with various connection technologies in each case.
SIRIUS relays - one range for every application.
Параметры
| Nominal current | - |
| Width | 45.0 |
| Height | 57.0 |
| Depth | 73.0 |
| Suitable for front mounting | Нет |
| With plug-in socket | Нет |
| Remote operation possible | Нет |
| Suitable for remote control | Нет |
| Function flashing, starting with pause, fixed time | Да |
| Function flashing, starting with pulse, fixed time | Нет |
| Clock function, starting with pause, variable | Нет |
| Clock function, starting with pulse, variable | Нет |
| With semiconductor output | Нет |
| Function delay-on energization | Да |
| Function floating contact on energization | Да |
| Function star-delta | Нет |
| Time range | 0.05 |
| Function delay on de-energization | Нет |
| Function floating contact on de-energization | Да |
| Function pulse shaping | Да |
| Type of electric connection | Spring clamp connection |
| Rated control supply voltage Us at AC 50HZ | 24 |
| Rated control supply voltage Us at AC 60HZ | 100 |
| Rated control supply voltage Us at DC | 24 |
| Number of outputs, undelayed, normally closed contact | 0 |
| Number of outputs, undelayed, normally open contact | 0 |
| Number of outputs, undelayed, change-over contact | 0 |
| Number of outputs, delayed, normally closed contact | 0 |
| Number of outputs, delayed, normally open contact | 0 |
| Number of outputs, delayed, change-over contact | 1 |
| Pluggable on auxiliary contact block | Нет |
| Outputs, reversible delayed/undelayed | - |
| Suitable for DIN rail (top hat rail) mounting | Нет |
| Voltage type for actuating | AC/DC |
