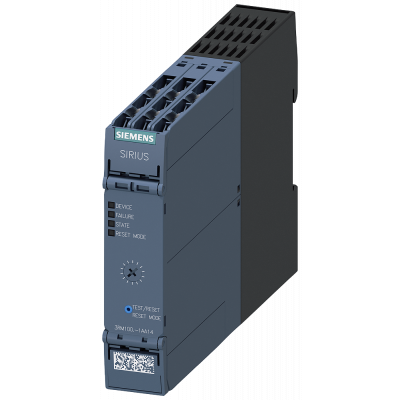

Direct-on-line starter, 0.1-0.5 A, 110-230 V AC, screw terminal
131.94€
Включая НДС
Артикул: 3RM1001-1AA14
КОМПАКТНЫЙ ПУСКАТЕЛЬ ПРЯМОГО ПУСКА SIRIUS 3RM1, НОМ. РАБОЧЕЕ НАПРЯЖЕНИЕ ДО 500 В АС, ДИАПАЗОН УСТАВОК НОМ. РАБОЧЕГО ТОКА 0,1-0,5 A, НОМ. ПИТАЮЩЕЕ НАПРЯЖЕНИЕ УПРАВЛЕНИЯ US 110-230 В AC, ВИНТОВЫЕ КЛЕММЫ Direct-on-line starter SIRIUS 3RM1 for functional switching of three-phase motors.
Narrow design, multifunctional, with electronic overload protection, durable and energy-efficient hybrid switching technology, small number of different devices due to wide setting ranges, easy installation thanks to low wiring requirements, fast error diagnostics due to LED display, innovative enclosure concept, e.g. with labeled cover caps and removable terminals.
Available as direct or reversing starter, optionally with ATEX certification and safety-related shutdown, with various motor current ranges, supply voltage types and connection technologies.
An extensive range of accessories, such as device connector, fuse module, infeed system or sealable covers, completes the system.
Getting started in minimum space - SIRIUS 3RM1 motor starters.
Параметры
| Width | 22.5 |
| Height | 100.0 |
| Depth | 141.6 |
| With transformer | Нет |
| Rated operation power at AC-3, 400 V | 0.12 |
| Number of command positions | 0 |
| Number of auxiliary contacts as normally open contact | - |
| Number of auxiliary contacts as normally closed contact | - |
| Suitable for emergency stop | Нет |
| Rated operation current Ie | 0.5 |
| Number of indicator lights | 4 |
| Overload release current setting | 0.5 |
| Supporting protocol for LON | - |
| Supporting protocol for TCP/IP | - |
| Supporting protocol for ASI | - |
| Supporting protocol for PROFIBUS | - |
| Supporting protocol for CAN | - |
| Supporting protocol for INTERBUS | - |
| Supporting protocol for MODBUS | - |
| Supporting protocol for Data-Highway | - |
| Supporting protocol for DeviceNet | - |
| Supporting protocol for SUCONET | - |
| Supporting protocol for other bus systems | - |
| External reset possible | Да |
| Rail mounting possible | - |
| Rated control supply voltage Us at AC 50HZ | 110 |
| Rated control supply voltage Us at AC 60HZ | 110 |
| Rated control supply voltage Us at DC | 110 |
| Degree of protection (IP) | IP20 |
| Supporting protocol for SERCOS | - |
| Supporting protocol for INTERBUS-Safety | - |
| Release class | CLASS 10 A |
| With short-circuit release | Нет |
| With fuse | Нет |
| Type of electrical connection of main circuit | Screw connection |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Supporting protocol for AS-Interface Safety at Work | - |
| Supporting protocol for DeviceNet Safety | - |
| Supporting protocol for EtherNet/IP | - |
| Supporting protocol for Foundation Fieldbus | - |
| Supporting protocol for PROFINET CBA | - |
| Supporting protocol for PROFINET IO | - |
| Supporting protocol for PROFIsafe | - |
| Supporting protocol for SafetyBUS p | - |
| Voltage type for actuating | AC/DC |
| Kind of motor starter | - |
| Rated operation power at AC-3, 230 V, 3-phase | - |
| Rated power, 460 V, 60 Hz, 3-phase | - |
| Rated power, 575 V, 60 Hz, 3-phase | - |
| Rated operation current at AC-3, 400 V | - |
| Ambient temperature, upper operating limit | - |
| Temperature compensated overload protection | - |
| Rated conditional short-circuit current, type 2, 400 V | - |
| Rated conditional short-circuit current, type 2, 230 V | - |
| Rated conditional short-circuit current, type 1, 480 Y/277 V | - |
| Rated conditional short-circuit current, type 1, 600 Y/347 V | - |
| Degree of protection (NEMA) | - |
| Coordination class according to IEC 60947-4-3 | - |
