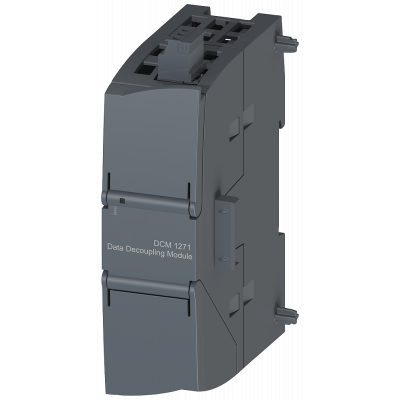

S7-1200, DCM 1271, data decoupling unit for AS-i master CM 1243-2 in: 24 V/30 V DC
126.92€
Включая НДС
Артикул: 3RK7271-1AA30-0AA0
SIMATIC S7-1200, DCM 1271, DATA DECOUPLING MODULE, ДЛЯ AS-I MASTER CM 1243-2 IN: DC 24 V / 30 V OUT: 1 X AS-I, 4 A INTEGR. OVERLOAD PROTECTION, INTEGR. EARTH FAULT DETECTION, SIGNALING CONTACT SIMATIC S7-1200 Basic Controller - Flexible thanks to wide variety of communication options In order to guarantee data transmission to the widest variety of systems a series of communication modules is offered for the SIMATIC S7-1200, ranging from the RS232 interface and AS-i to the PROFIBUS connection in the master or slave mode. This ensures an extensive range of possible applications for SIMATIC S7-1200.
Параметры
| Width | 30.0 |
| Height | 100.0 |
| Depth | 75.0 |
| Suitable for safety functions | Нет |
| Type of voltage (input voltage) | DC |
| Redundancy | Нет |
| Output voltage at AC 50 Hz | - |
| Output voltage at AC 60 Hz | - |
| Output voltage at DC | 20.5 |
| Input voltage at AC 50 Hz | - |
| Input voltage at AC 60 Hz | - |
| Input voltage at DC | 21 |
| Max. output current AC 50 Hz | - |
| Max. output current AC 60 Hz | - |
| Max. output current DC | 4.0 |
| Max. input current AC 50 Hz | - |
| Max. input current AC 60 Hz | - |
| Max. input current DC | 4.1 |
| Type of output voltage | DC |
