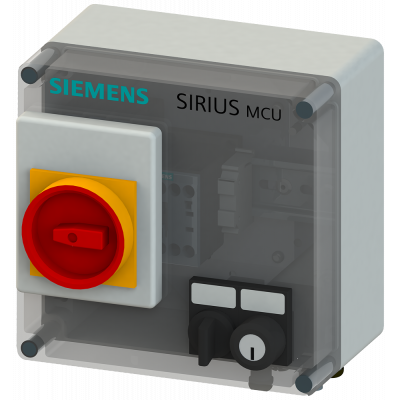

SIRIUS MCU motor starter enclosure - degree of protection IP55 plastic communication
502.73€
Включая НДС
Артикул: 3RK4353-3HR58-1BA0
ПУСКАТЕЛЬ ЭЛЕКТРОДВИГАТЕЛЯ SIRIUS MCU, СТЕПЕНЬ ЗАЩИТЫ IP55, ПЛАСТИКОВЫЙ КОРПУС, БЕЗ КОММУНИКАЦИИ, ЭЛЕКТРОМЕХАНИЧЕСКАЯ КОММУТАЦИЯ, ЗАЩИТА ОТ КЗ: АВТОМАТИЧЕСКИЙ ВЫКЛЮЧАТЕЛЬ, РЕВЕРСИВНЫЙ ПУСКАТЕЛЬ, БЕЗ ТОРМОЗА, МАКСИМАЛЬНЫЙ НОМИНАЛЬНЫЙ ТОК 1.00A, ЗАЩИТА ЭЛЕКТРОДВИГАТЕЛЯ: АВТОМАТИЧЕСКИЙ ВЫКЛЮЧАТЕЛЬ С ТЕПЛОВЫМ РАСЦЕПИТЕЛЕМ ПЕРЕГРУЗКИ, ПОВОРОТНЫЙ ПРИВОД ВЫКЛЮЧАТЕЛЯ: РУКОЯТКА - ЧЕРНАЯ, ПОДЛОЖКА - СЕРАЯ, РУКОВОДСТВО OPERATION WITHOUT CONNEC POWER M-ВИНТОВЫЕ КЛЕММЫ СТАНДАРТНЫЙ ПРОДУКТ
Параметры
| Width | 182.0 |
| Height | 220.0 |
| Depth | 145.0 |
| With transformer | Нет |
| Rated operation power at AC-3, 400 V | 1.1 |
| Number of command positions | - |
| Number of auxiliary contacts as normally open contact | - |
| Number of auxiliary contacts as normally closed contact | - |
| Suitable for emergency stop | - |
| Rated operation current Ie | 3.2 |
| Number of indicator lights | - |
| Overload release current setting | 2.2 |
| Supporting protocol for LON | - |
| Supporting protocol for TCP/IP | - |
| Supporting protocol for ASI | Нет |
| Supporting protocol for PROFIBUS | - |
| Supporting protocol for CAN | - |
| Supporting protocol for INTERBUS | - |
| Supporting protocol for MODBUS | - |
| Supporting protocol for Data-Highway | - |
| Supporting protocol for DeviceNet | - |
| Supporting protocol for SUCONET | - |
| Supporting protocol for other bus systems | - |
| External reset possible | - |
| Rail mounting possible | - |
| Rated control supply voltage Us at AC 50HZ | 184.0 |
| Rated control supply voltage Us at AC 60HZ | 196.0 |
| Rated control supply voltage Us at DC | - |
| Degree of protection (IP) | IP55 |
| Supporting protocol for SERCOS | - |
| Supporting protocol for INTERBUS-Safety | - |
| Release class | - |
| With short-circuit release | Да |
| With fuse | - |
| Type of electrical connection of main circuit | Screw connection |
| Type of electrical connection for auxiliary- and control current circuit | - |
| Supporting protocol for AS-Interface Safety at Work | - |
| Supporting protocol for DeviceNet Safety | - |
| Supporting protocol for EtherNet/IP | - |
| Supporting protocol for Foundation Fieldbus | - |
| Supporting protocol for PROFINET CBA | - |
| Supporting protocol for PROFINET IO | - |
| Supporting protocol for PROFIsafe | - |
| Supporting protocol for SafetyBUS p | - |
| Voltage type for actuating | AC |
| Kind of motor starter | Reversing starter |
| Rated operation power at AC-3, 230 V, 3-phase | - |
| Rated power, 460 V, 60 Hz, 3-phase | - |
| Rated power, 575 V, 60 Hz, 3-phase | - |
| Rated operation current at AC-3, 400 V | 3.2 |
| Ambient temperature, upper operating limit | - |
| Temperature compensated overload protection | - |
| Rated conditional short-circuit current, type 2, 400 V | - |
| Rated conditional short-circuit current, type 2, 230 V | - |
| Rated conditional short-circuit current, type 1, 480 Y/277 V | - |
| Rated conditional short-circuit current, type 1, 600 Y/347 V | - |
| Degree of protection (NEMA) | - |
| Coordination class according to IEC 60947-4-3 | Class 1 |
