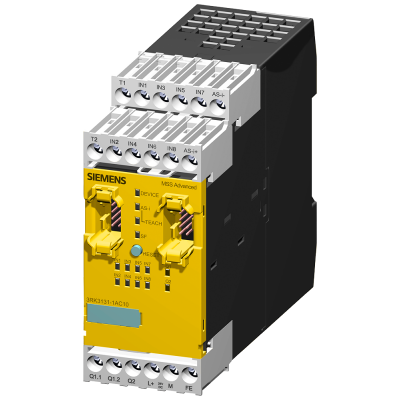

SIRIUS, central unit 3RK3 advanced for Modular Safety System 3RK3 4/8 F-DI
868.92€
Включая НДС
Артикул: 3RK3131-1AC10
SIRIUS, CENTRAL MODULE 3RK3 ADVANCED ДЛЯ MODULAR SAFETY SYSTEM 3RK3 4/8 F-DI, 1F-RO, 1 F-DO, 24VDC MONITORS OF ASI SLAVES, CONTROL OF SAFE OUTPUTS ON AS-I BUS PARAMETERIZABLE VIA SW MSS ES WIDTH 45MM SCREW TERMINAL UP TO CATEGORY 4 (EN954-1) UP TO SIL3 (IEC 61508) UP TO PERFORMANCE LEVEL E (ISO 13849-1) Central unit SIRIUS 3RK3 for complex safety applications with AS-Interface connection.
Параметры
| Width | 45.0 |
| Model | Basic device |
| Height | 111.0 |
| Depth | 124.0 |
| Release-delay | - |
| With approval according to UL | Да |
| With detachable clamps | Да |
| With start input | - |
| With feedback circuit | - |
| Number of outputs, safety related, undelayed, with contact | 0 |
| Number of outputs, safety related, delayed, with contact | - |
| Number of outputs, safety related, undelayed, semiconductors | 1 |
| Number of outputs, safety related, delayed, semiconductors | - |
| Number of outputs, signalling function, undelayed, with contact | - |
| Number of outputs, signalling function, delayed, with contact | - |
| Number of outputs, signalling function, undelayed, semiconductors | - |
| Number of outputs, signalling function, delayed, semiconductors | - |
| Type of electric connection | Screw connection |
| Rail mounting possible | Нет |
| Rated control supply voltage Us at AC 50HZ | - |
| Rated control supply voltage Us at AC 60HZ | - |
| Rated control supply voltage Us at DC | 24 |
| With muting function | Нет |
| Type of safety acc. IEC 61496-1 | - |
| With approval for TÜV | Да |
| With approval for BG BIA | - |
| Category according to EN 954-1 | 4 |
| Suitable for monitoring of magnetic switches | - |
| Suitable for monitoring of proximity switches | Да |
| Suitable for monitoring of emergency-stop circuits | Да |
| Suitable for monitoring of optoelectronic protection equipment | Да |
| Suitable for monitoring of position switches | Да |
| Suitable for monitoring of tactile sensors | - |
| Suitable for monitoring of valves | Да |
| Performance level acc. EN ISO 13849-1 | Level e |
| Stop category acc. IEC 60204 | 0 + 1 |
| Voltage type for actuating | DC |
| Evaluation inputs | - |
| SIL according to IEC 61508 | 3 |
