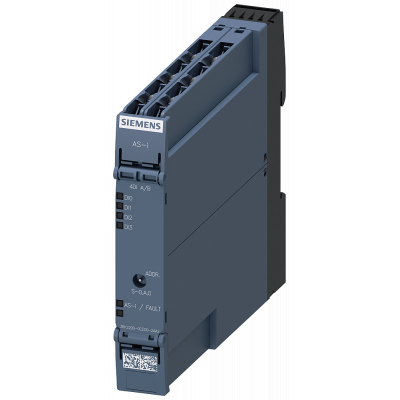

AS-i SlimLine Compact module A/B slave 4 DI, IP20 4x input 2-wire sensor 17.5 mm
110.21€
Включая НДС
Артикул: 3RK2200-0CE00-2AA2
КОМПАКТНЫЙ МОДУЛЬ AS-I SLIMLINE IP20, ВЕДОМОЕ УСТРОЙСТВО A/B, 4 DI (ДИСКРЕТНЫХ ВХОДА), ВИНТОВЫЕ КЛЕММЫ, 17,5 ММ, 4 ВХОДА ДЛЯ ПОДКЛЮЧЕНИЯ 2-ПРОВОДНЫХ ДАТЧИКОВ
Параметры
| Width | 17.5 |
| Height | 100.0 |
| Depth | 120.0 |
| Input current at signal 1 | - |
| Suitable for safety functions | Нет |
| Number of digital inputs | 4 |
| Number of digital outputs | 0 |
| Time delay at signal exchange | - |
| Voltage type of supply voltage | - |
| Supporting protocol for LON | Нет |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| With optical interface | Нет |
| Type of voltage (input voltage) | - |
| Supporting protocol for TCP/IP | Нет |
| Supporting protocol for ASI | Да |
| Supporting protocol for PROFIBUS | Нет |
| Supporting protocol for CAN | Нет |
| Supporting protocol for INTERBUS | Нет |
| Supporting protocol for KNX | Нет |
| Supporting protocol for MODBUS | Нет |
| Supporting protocol for Data-Highway | Нет |
| Supporting protocol for DeviceNet | Нет |
| Supporting protocol for SUCONET | Нет |
| Supporting protocol for other bus systems | Нет |
| Output current | - |
| Short-circuit protection, outputs available | - |
| Type of digital output | None |
| Type of electric connection | Screw connection |
| Rail mounting possible | Нет |
| Explosion safety category for gas | - |
| Explosion safety category for dust | - |
| Fieldbus connection over separate bus coupler possible | - |
| System accessory | Да |
| Appendant operation agent (Ex ia) | - |
| Appendant operation agent (Ex ib) | - |
| Degree of protection (IP) | IP20 |
| Supporting protocol for SERCOS | Нет |
| Supporting protocol for INTERBUS-Safety | Нет |
| Category according to EN 954-1 | - |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces Wireless | 0 |
| Front build in possible | Нет |
| Rack-assembly possible | Нет |
| Wall mounting/direct mounting | Нет |
| Radio standard Bluetooth | Нет |
| Radio standard WLAN 802.11 | Нет |
| IO link master | Нет |
| Performance level acc. EN ISO 13849-1 | - |
| Supporting protocol for AS-Interface Safety at Work | Нет |
| Supporting protocol for DeviceNet Safety | Нет |
| Supporting protocol for EtherNet/IP | Нет |
| Supporting protocol for Foundation Fieldbus | Нет |
| Supporting protocol for PROFINET CBA | Нет |
| Supporting protocol for PROFINET IO | Нет |
| Supporting protocol for PROFIsafe | Нет |
| Supporting protocol for SafetyBUS p | Нет |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | - |
| Permitted voltage at output | - |
| Permitted voltage at input | - |
| Type of output voltage | - |
| Digital inputs configurable | - |
| Digital outputs configurable | Нет |
| Radio standard GPRS | Нет |
| Radio standard GSM | Нет |
| Radio standard UMTS | Нет |
| SIL according to IEC 61508 | - |
