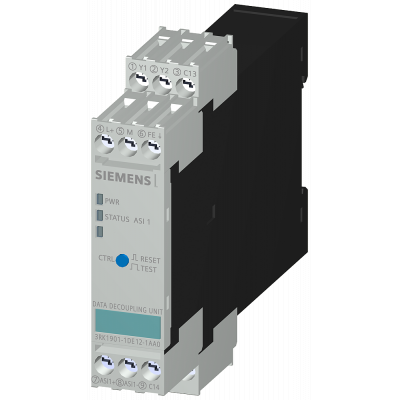

AS-Interface data decoupl. 1x 4 A screw terminal AS-Interface
126.92€
Включая НДС
Артикул: 3RK1901-1DE12-1AA0
AS-I РАЗВЯЗКА 1 X 4A ВИНТ., AS-INTERFACE SINGLE DATA МОДУЛЬ РАЗВЯЗКИ, IP20, SLIMLINE S22.5 ВИНТ.,-TYPE TERMINALS, ШИРИНА МОДУЛЯ 22.5 MM, IN: 24 V, / 30 V DC OUT: 1 X AS-I, 4 A, ВСТР. ЗАЩИТА ОТ ПЕРЕГРУЗКИ, ВСТР. ЗАЩИТА ОТ ЗАМЫКАНИЯ НА ЗЕМЛЮ, СИГНАЛЬНЫЙ КОНТАКТCT,
Параметры
| Width | 22.5 |
| Height | 101.3 |
| Depth | 121.2 |
| Suitable for safety functions | Да |
| Type of voltage (input voltage) | DC |
| Redundancy | Нет |
| Output voltage at AC 50 Hz | - |
| Output voltage at AC 60 Hz | - |
| Output voltage at DC | 20.5 |
| Input voltage at AC 50 Hz | - |
| Input voltage at AC 60 Hz | - |
| Input voltage at DC | 21 |
| Max. output current AC 50 Hz | - |
| Max. output current AC 60 Hz | - |
| Max. output current DC | 4.0 |
| Max. input current AC 50 Hz | - |
| Max. input current AC 60 Hz | - |
| Max. input current DC | 4.1 |
| Type of output voltage | DC |
