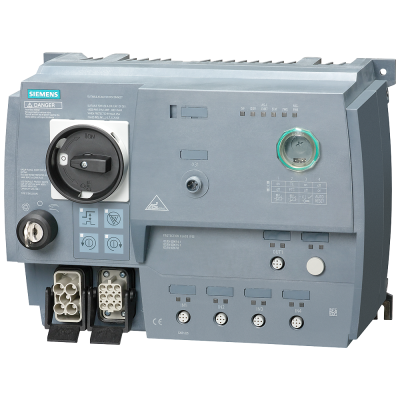

Motor starter M200D AS-i communication: AS-i direct starter, basic, mech. switching
727.86€
Включая НДС
Артикул: 3RK1315-6LS41-2AA3
ПУСКАТЕЛЬ ЭЛЕКТРОДВИГАТЕЛЯ SIRIUS M200D, КОММУНИКАЦИЯ ПО AS-I: AS-INTERFACE DIRECT ON-LINE STARTER, BASIC МЕХАНИЧЕСКАЯ КОММУТАЦИЯ 3 400V, AC/5,5КВТ, 1,5A...12,00A, ЭЛЕКТРОННАЯ ЗАЩИТА ОТ ПЕРЕГРУЗКИ, ТЕРМИСТОРНАЯ ЗАЩИТА: THERMOCLICK / PTC WITH BRAKE КОНТАКТ 400V AC 2DI AS-I + 2DI / 1DO ON DEVICE HAN Q4/2 - HAN Q8/0 WITH OPERATOR TERMINAL И KEY-OPERATED SWITCH Motor starters SIRIUS M200D for starting, monitoring and protecting motors and loads for use in the field, for example in conveyor systems.
The rugged motor starters with a high degree of protection for AS-Interface are easy to configure and, thanks to the modular starter concept and pre-assembled cables, they can be installed quickly without any errors and replaced equally quickly during servicing. The integration of associated sensors is supported. The use of the devices increases the availability of the plant thanks to the comprehensive diagnostics concept and sophisticated plant monitoring. The Motor Starter ES software is available for configuration, commissioning, operation and diagnostics. The motor starters are approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready.
Available as direct-on-line or reversing starter with various motor current ranges, optionally electromechanical or electronic switching, optionally with brake control or local operator panel.
An extensive range of accessories, such as pre-assembled cables, suitable for all M200D motor starters, is available.
SIRIUS M200D - The rugged motor starter for distributed drive solutions.
Параметры
| Width | 294.0 |
| Height | 215.0 |
| Depth | 159.0 |
| With transformer | Нет |
| Rated operation power at AC-3, 400 V | 5.5 |
| Number of command positions | - |
| Number of auxiliary contacts as normally open contact | - |
| Number of auxiliary contacts as normally closed contact | - |
| Suitable for emergency stop | - |
| Rated operation current Ie | 12 |
| Number of indicator lights | - |
| Overload release current setting | 1.5 |
| Supporting protocol for LON | - |
| Supporting protocol for TCP/IP | - |
| Supporting protocol for ASI | Да |
| Supporting protocol for PROFIBUS | - |
| Supporting protocol for CAN | - |
| Supporting protocol for INTERBUS | - |
| Supporting protocol for MODBUS | - |
| Supporting protocol for Data-Highway | - |
| Supporting protocol for DeviceNet | - |
| Supporting protocol for SUCONET | - |
| Supporting protocol for other bus systems | - |
| External reset possible | - |
| Rail mounting possible | - |
| Rated control supply voltage Us at AC 50HZ | - |
| Rated control supply voltage Us at AC 60HZ | - |
| Rated control supply voltage Us at DC | 20.4 |
| Degree of protection (IP) | IP65 |
| Supporting protocol for SERCOS | - |
| Supporting protocol for INTERBUS-Safety | - |
| Release class | CLASS 10 |
| With short-circuit release | Да |
| With fuse | - |
| Type of electrical connection of main circuit | Other |
| Type of electrical connection for auxiliary- and control current circuit | Other |
| Supporting protocol for AS-Interface Safety at Work | - |
| Supporting protocol for DeviceNet Safety | - |
| Supporting protocol for EtherNet/IP | - |
| Supporting protocol for Foundation Fieldbus | - |
| Supporting protocol for PROFINET CBA | - |
| Supporting protocol for PROFINET IO | - |
| Supporting protocol for PROFIsafe | - |
| Supporting protocol for SafetyBUS p | - |
| Voltage type for actuating | DC |
| Kind of motor starter | Direct starter |
| Rated operation power at AC-3, 230 V, 3-phase | - |
| Rated power, 460 V, 60 Hz, 3-phase | - |
| Rated power, 575 V, 60 Hz, 3-phase | - |
| Rated operation current at AC-3, 400 V | 12 |
| Ambient temperature, upper operating limit | - |
| Temperature compensated overload protection | - |
| Rated conditional short-circuit current, type 2, 400 V | - |
| Rated conditional short-circuit current, type 2, 230 V | - |
| Rated conditional short-circuit current, type 1, 480 Y/277 V | - |
| Rated conditional short-circuit current, type 1, 600 Y/347 V | - |
| Degree of protection (NEMA) | - |
| Coordination class according to IEC 60947-4-3 | Class 1 |
