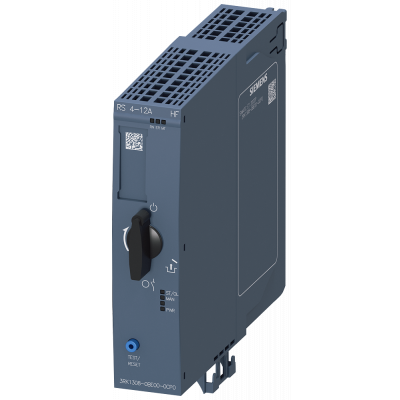

Reversing starter, electronic overload protection up to 5.5 kW/400 V 4.0 A to 12 A
432.37€
Включая НДС
Артикул: 3RK1308-0BE00-0CP0
Реверсивный пускатель расширенной функциональности в комплекте вентилятор (3RW4928-8VB00) электронная коммутация электронная защита от перегрузки до 5,5 кВт/400 В диапазон настройки 4,0–12 А PROFIenergy опция: модуль 3DI/LC Reversing starter SIMATIC ET 200SP for functional switching of three-phase motors, with short-circuit protection and electronic overload protection.
The multifunctional motor starters are fully integrated in the ET 200SP distributed I/O system. The fast and comprehensive configuration takes place in the TIA Portal. Thanks to hybrid switching technology, the devices are extremely durable and energy efficient. Thanks to the wide setting range, there is less variety of devices which means reduced costs for stock keeping and configuration. The narrow design saves space in the control cabinet. The easy installation by means of a wiring bus and plug-in technology facilitates fast replacement of the motor starters and increases the availability of the plant. The devices are approved for worldwide use (e.g. IEC, CCC and UL/CSA) and are IE3/IE4-ready.
Available as direct-on-line or reversing starter with various motor current ranges, optionally with safety-related shutdown, also for hazardous applications (ATEX).
A BaseUnit is necessary for operation of the ET 200SP motor starter. Optionally, a 3DI/LC control module can be snapped on, in order to establish local control with three additional digital inputs.
The ET 200SP distributed I/O supersedes the tried and tested ET 200S system.
ET 200SP motor starters - flexible Powerful. Space-saving.
Параметры
| Width | 30.0 |
| Height | 142.0 |
| Depth | 150.0 |
| With transformer | Нет |
| Rated operation power at AC-3, 400 V | - |
| Number of command positions | - |
| Number of auxiliary contacts as normally open contact | - |
| Number of auxiliary contacts as normally closed contact | - |
| Suitable for emergency stop | - |
| Rated operation current Ie | 12 |
| Number of indicator lights | 6 |
| Overload release current setting | 4 |
| Supporting protocol for LON | - |
| Supporting protocol for TCP/IP | - |
| Supporting protocol for ASI | Нет |
| Supporting protocol for PROFIBUS | - |
| Supporting protocol for CAN | - |
| Supporting protocol for INTERBUS | - |
| Supporting protocol for MODBUS | - |
| Supporting protocol for Data-Highway | - |
| Supporting protocol for DeviceNet | - |
| Supporting protocol for SUCONET | - |
| Supporting protocol for other bus systems | - |
| External reset possible | Да |
| Rail mounting possible | - |
| Rated control supply voltage Us at AC 50HZ | - |
| Rated control supply voltage Us at AC 60HZ | - |
| Rated control supply voltage Us at DC | - |
| Degree of protection (IP) | IP20 |
| Supporting protocol for SERCOS | - |
| Supporting protocol for INTERBUS-Safety | - |
| Release class | - |
| With short-circuit release | Да |
| With fuse | - |
| Type of electrical connection of main circuit | - |
| Type of electrical connection for auxiliary- and control current circuit | - |
| Supporting protocol for AS-Interface Safety at Work | - |
| Supporting protocol for DeviceNet Safety | - |
| Supporting protocol for EtherNet/IP | - |
| Supporting protocol for Foundation Fieldbus | - |
| Supporting protocol for PROFINET CBA | - |
| Supporting protocol for PROFINET IO | - |
| Supporting protocol for PROFIsafe | - |
| Supporting protocol for SafetyBUS p | - |
| Voltage type for actuating | DC |
| Kind of motor starter | - |
| Rated operation power at AC-3, 230 V, 3-phase | 4.78 |
| Rated power, 460 V, 60 Hz, 3-phase | - |
| Rated power, 575 V, 60 Hz, 3-phase | - |
| Rated operation current at AC-3, 400 V | - |
| Ambient temperature, upper operating limit | - |
| Temperature compensated overload protection | - |
| Rated conditional short-circuit current, type 2, 400 V | - |
| Rated conditional short-circuit current, type 2, 230 V | - |
| Rated conditional short-circuit current, type 1, 480 Y/277 V | - |
| Rated conditional short-circuit current, type 1, 600 Y/347 V | - |
| Degree of protection (NEMA) | - |
| Coordination class according to IEC 60947-4-3 | Class 1 |
