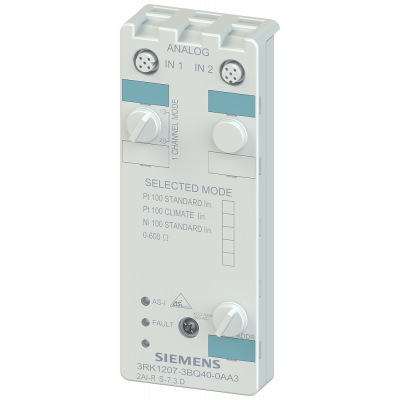

AS-i compact module, IP67 analog, 2 AI, number format S7 2xinp. (M12), Pt100 LIN.
303.88€
Включая НДС
Артикул: 3RK1207-3BQ40-0AA3
AS-I КОМПАКТНЫЙ МОДУЛЬ, IP67 АНАЛОГ., 2AI, ЦИФР. ФОРМАТ S7 2 X ВХОДА (M12), PT100 LIN. ST. ДЛЯ 4-ПРОВОДНЫХ ДАТЧИКОВ АКТИВНЫЕ КАНАЛЫ 1 И 2 БЕЗ ФИЛЬТРАЦИИ 50ГЦ МОНТАЖНАЯ ПЛАТА 3RK19010CA00 ЗАКАЗЫВАЕТСЯ ОТДЕЛЬНО
Параметры
| Width | 60.0 |
| Height | 152.0 |
| Depth | 29.0 |
| Suitable for safety functions | Нет |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 0 |
| Voltage type of supply voltage | - |
| Supporting protocol for LON | Нет |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | - |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| Supporting protocol for TCP/IP | Нет |
| Supporting protocol for ASI | Да |
| Supporting protocol for PROFIBUS | Нет |
| Supporting protocol for CAN | Нет |
| Supporting protocol for INTERBUS | Нет |
| Supporting protocol for KNX | Нет |
| Supporting protocol for MODBUS | Нет |
| Supporting protocol for Data-Highway | Нет |
| Supporting protocol for DeviceNet | Нет |
| Supporting protocol for SUCONET | Нет |
| Supporting protocol for other bus systems | Нет |
| Input, current | Нет |
| Input, voltage | Нет |
| Input, resistor | Да |
| Input, resistance thermometer | Да |
| Input, thermocouple | Нет |
| Input signal, configurable | Да |
| Output, current | - |
| Output, voltage | - |
| Output signal configurable | - |
| Resolution of the analogue inputs | 16 |
| Resolution of the analogue outputs | 16 |
| Type of electric connection | Screw connection |
| Rail mounting possible | Нет |
| Explosion safety category for gas | - |
| Explosion safety category for dust | None |
| Fieldbus connection over separate bus coupler possible | - |
| System accessory | Да |
| Appendant operation agent (Ex ia) | - |
| Appendant operation agent (Ex ib) | - |
| Degree of protection (IP) | IP67 |
| Supporting protocol for SERCOS | Нет |
| Supporting protocol for INTERBUS-Safety | Нет |
| Category according to EN 954-1 | - |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces Wireless | 0 |
| Front build in possible | Нет |
| Rack-assembly possible | Нет |
| Wall mounting/direct mounting | Нет |
| Radio standard Bluetooth | Нет |
| Radio standard WLAN 802.11 | Нет |
| IO link master | Нет |
| Performance level acc. EN ISO 13849-1 | - |
| Supporting protocol for AS-Interface Safety at Work | Нет |
| Supporting protocol for DeviceNet Safety | Нет |
| Supporting protocol for EtherNet/IP | Нет |
| Supporting protocol for Foundation Fieldbus | Нет |
| Supporting protocol for PROFINET CBA | Нет |
| Supporting protocol for PROFINET IO | Нет |
| Supporting protocol for PROFIsafe | Нет |
| Supporting protocol for SafetyBUS p | Нет |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | - |
| Analogue inputs configurable | Да |
| Analogue outputs configurable | - |
| Radio standard GPRS | Нет |
| Radio standard GSM | Нет |
| Radio standard UMTS | Нет |
| SIL according to IEC 61508 | - |
| Degree of protection (NEMA) | - |
