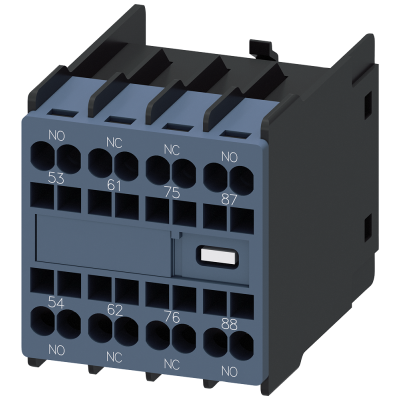

Auxiliary switch 11U, front, 2 NO + 2 NC, current path 1 NO, 1 NC, 1 NC, 1 NO, spring-loaded terminals
19.56€
Включая НДС
Артикул: 3RH2911-2XB22-0MA0
Вспомогательный выключатель 11 U, с лицевой стороны, 2 НО + 2 НЗ Токопровод 1 НО, 1 НЗ, 1 НЗ, 1 НО для 3RH2 и 3RT2 Пружинная клемма 53/54, 61/62, 75/76, 87/88 auxiliary switch SIRIUS 3RH29 for the expansion of auxiliary contacts in the control circuit.
The front-mounted 3RH29 auxiliary switches can be installed on 3RT2 contactors and 3RH2 contactor relays without the need for tools, regardless of size.
The 3RH19/3RH29 auxiliary switches are available as versions for front or lateral mounting, with up to four instantaneous contacts or up to two leading NO and NC contacts. The auxiliary switches can be designed as positively driven contacts in 3RH contactor relays or also as mirror contacts in the case of 3RT power contactors. All of them are available with screw terminal and spring-type terminal.
Simple, efficient and always up to date - SIRIUS modular system.
Параметры
| Mounting method | Other |
| Model | Top mounting |
| Lamp holder | None |
| Rated operation current Ie at AC-15, 230 V | 6 |
| Type of electric connection | Spring clamp connection |
| Number of fault-signal switches | 0 |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 2 |
| Number of contacts as change-over contact | 0 |
