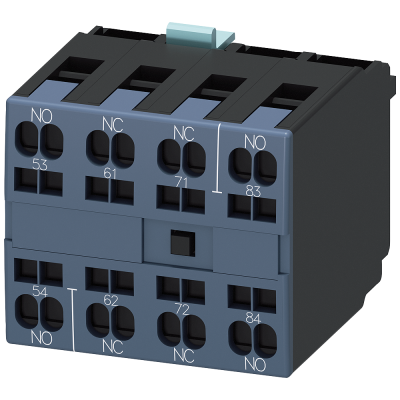

Auxiliary switch 2 NO + 2 NC, sequence numbers 5-8, EN50012, 4-pole

БЛОК ДОПОЛНИТЕЛЬНЫХ КОНТАКТОВ, 2НО+2НЗ С ПОРЯДКОВЫМИ ЦИФРАМИ 5..8 DIN EN 50012, 4-Х ПОЛЮСНЫЙ ПРУЖИННЫЕ КЛЕММЫ (CAGE CLAMP) ДЛЯ КОНТАКТОРОВ ТИПОРАЗМЕР S0.S12 auxiliary switch SIRIUS 3RH19 for the expansion of auxiliary contacts in the control circuit. This 3RH19 auxiliary switch can be fitted to 3RT1 contactors and 3RH1 contactor relays of sizes S0-S12 without the need for tools. The 3RH19/3RH29 auxiliary switches are available as versions for front or lateral mounting, with up to four instantaneous contacts or up to two leading NO and NC contacts. The auxiliary switches can be designed as positively driven contacts in 3RH contactor relays or also as mirror contacts in the case of 3RT power contactors. All of them are available with screw terminal and spring-type terminal. Simple, efficient and always up to date - SIRIUS modular system.

Параметры

Mounting method	Other
Model	Top mounting
Lamp holder	None
Rated operation current Ie at AC-15, 230 V	6
Type of electric connection	Spring clamp connection
Number of fault-signal switches	0
Number of contacts as normally closed contact	2
Number of contacts as normally open contact	2
Number of contacts as change-over contact	0
