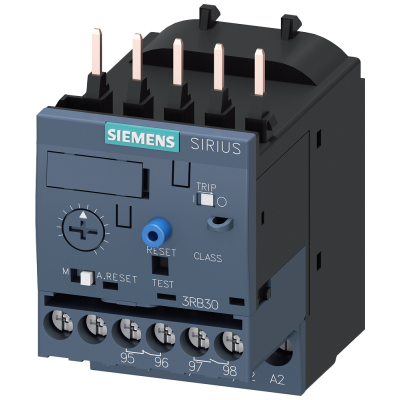

Overload relay 0.1-0.4 A motor protection S00, Class 20, contactor mounting

РЕЛЕ ПЕРЕГРУЗКИ 0.1...0.4 A ДЛЯ ЗАЩИТЫ ЭЛЕКТРОДВИГАТЕЛЯ, ТИПОРАЗМЕР S00, КЛАСС 20, МОНТАЖ НА КОНТАКТОР, СИЛОВАЯ ЦЕПЬ: ВИНТОВЫЕ КЛЕММЫ, ВСПОМ. ЦЕПЬ: ВИНТОВЫЕ ЗАЖИМЫ, РУЧНОЙ-АВТО СБРОС solid-state overload relay SIRIUS 3RB3 for inverse-time delayed protection of loads with normal and heavy starting against excessive temperature rises due to overload, phase unbalance or phase failure. Due to the wide current setting ranges and various tripping characteristics, complete series of motors are covered with just a few types. With their low heat loss, they are particularly energy-efficient and help to reduce the temperature rise in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX) are a matter of course. Can be supplied with different setting ranges of the overload release and with different trip classes. They are available with screw or spring-loaded terminals for fast, maintenance-free and vibration-proof connection, as well as for stand-alone installation. The accessories consistently fit all sizes from S00 to S3. Simple, efficient and always up to date - SIRIUS modular system.

Параметры

Mounting method	Separate positioning
Number of auxiliary contacts as normally open contact	1
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as change-over contact	0
Rated control supply voltage Us at AC 50HZ	-
Rated control supply voltage Us at AC 60HZ	-
Rated control supply voltage Us at DC	-
Release class	CLASS 20
Type of electrical connection of main circuit	Screw connection
Adjustable current range	0.1
Voltage type for actuating	-
Reset function input	Нет
Reset function automatic	Да
Reset function push-button	-
