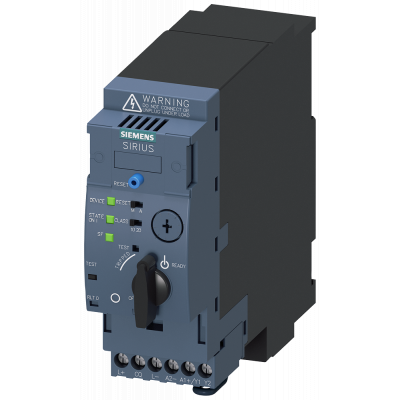

SIRIUS compact load feeder direct on-line starter for IO-Link, 690 V, 24 V DC, 0.32-1.25 A
517.72€
Включая НДС
Артикул: 3RA6400-1BB43
КОМПАКТНЫЙ ПУСКАТЕЛЬ ПРЯМОГО ПУСКА С ИНТЕРФЕЙСОМ IO-LINK, UI 690B, 32 A, 24 V DC, РЕГУЛИРОВКА РАСЦЕПИТЕЛЯ ПЕРЕГРУЗКИ 0.32... 1.25 A, IP20, СИЛОВАЯ ЦЕПЬ: ЗАМЕНЯЕМЫЕ КЛЕММЫ, БЕЗ КЛЕММ, ЦЕПЬ УПРАВЛЕНИЯ: ВИНТОВЫЕ КЛЕММЫ Compact starter for IO-Link SIRIUS 3RA64 for direct starting of standard three-phase motors up to 32 A.
The devices combine the functions of circuit breaker, contactor and electronic overload relay and offer extremely high operational reliability. A low number of variants simplifies logistics. The compact design saves space in the control cabinet. By means of the integrated IO-Link interface, the devices can be integrated into the Totally Integrated Automation concept and deliver extensive diagnostics data to the higher-level controller. Thanks to removable terminals, easy replacement is possible. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The compact starters are available as direct-on-line or reversing starters and with various setting ranges. Designed for DC operation, they are available with screw or spring-loaded terminals.
In addition to the 3RA68 infeed system, operator panels, auxiliary contacts and terminals, as well as connecting cables are available.
Simple, efficient and always up to date - SIRIUS modular system.
Параметры
| Width | 45.0 |
| Height | 170.0 |
| Depth | 165.0 |
| With transformer | Нет |
| Rated operation power at AC-3, 400 V | 0.37 |
| Number of command positions | - |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Suitable for emergency stop | - |
| Rated operation current Ie | 1.25 |
| Number of indicator lights | 3 |
| Overload release current setting | 0.32 |
| Supporting protocol for LON | - |
| Supporting protocol for TCP/IP | - |
| Supporting protocol for ASI | - |
| Supporting protocol for PROFIBUS | - |
| Supporting protocol for CAN | - |
| Supporting protocol for INTERBUS | - |
| Supporting protocol for MODBUS | - |
| Supporting protocol for Data-Highway | - |
| Supporting protocol for DeviceNet | - |
| Supporting protocol for SUCONET | - |
| Supporting protocol for other bus systems | Да |
| External reset possible | - |
| Rail mounting possible | - |
| Rated control supply voltage Us at AC 50HZ | - |
| Rated control supply voltage Us at AC 60HZ | - |
| Rated control supply voltage Us at DC | - |
| Degree of protection (IP) | IP20 |
| Supporting protocol for SERCOS | - |
| Supporting protocol for INTERBUS-Safety | - |
| Release class | Adjustable |
| With short-circuit release | Да |
| With fuse | Нет |
| Type of electrical connection of main circuit | Other |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Supporting protocol for AS-Interface Safety at Work | - |
| Supporting protocol for DeviceNet Safety | - |
| Supporting protocol for EtherNet/IP | - |
| Supporting protocol for Foundation Fieldbus | - |
| Supporting protocol for PROFINET CBA | - |
| Supporting protocol for PROFINET IO | - |
| Supporting protocol for PROFIsafe | - |
| Supporting protocol for SafetyBUS p | - |
| Voltage type for actuating | DC |
| Kind of motor starter | Direct starter |
| Rated operation power at AC-3, 230 V, 3-phase | - |
| Rated power, 460 V, 60 Hz, 3-phase | - |
| Rated power, 575 V, 60 Hz, 3-phase | - |
| Rated operation current at AC-3, 400 V | - |
| Ambient temperature, upper operating limit | 40 |
| Temperature compensated overload protection | - |
| Rated conditional short-circuit current, type 2, 400 V | - |
| Rated conditional short-circuit current, type 2, 230 V | - |
| Rated conditional short-circuit current, type 1, 480 Y/277 V | - |
| Rated conditional short-circuit current, type 1, 600 Y/347 V | - |
| Degree of protection (NEMA) | Other |
| Coordination class according to IEC 60947-4-3 | Class 2 |
