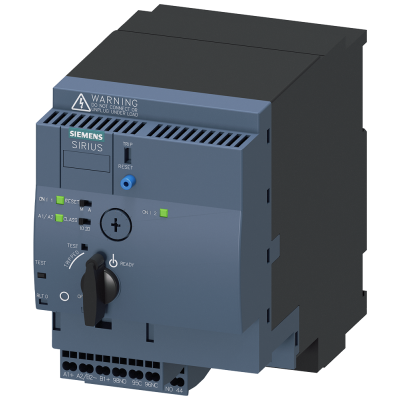

SIRIUS compact load feeder reversing starter 690 V, 24 V AC/DC, 50-60 Hz, 0.1-0.4 A
630.72€
Включая НДС
Артикул: 3RA6250-2AB33
РЕВЕРСИВНЫЙ КОМПАКТНЫЙ ПУСКАТЕЛЬ SIRIUS 3RA62, UI 690B, НОМ. НАПРЯЖЕНИЕ УПРАВЛЕНИЯ 24 B AC/DC, 50... 60 ГЦ, РЕГУЛИРОВКА РАСЦЕПИТЕЛЯ ПЕРЕГРУЗКИ 0.1 ... 0.4A, IP20, ПОДКЛЮЧЕНИЕ ГЛАВНОЙ СИЛОВОЙ ЦЕПИ: ЗАМЕНЯЕМЫЕ КЛЕММЫ, БЕЗ КЛЕММ, ПОДКЛЮЧЕНИЕ ВСПОМОГАТЕЛЬНЫХ ЦЕПЕЙ: ПРУЖИННЫЕ ЗАЖИМЫ compact starter SIRIUS 3RA62 for direct starting of standard three-phase motors up to 32 A.
The devices combine the functions of circuit breaker, contactor and electronic overload relay and offer extremely high operational reliability. A low number of variants simplifies logistics. The compact design saves space in the control cabinet. Thanks to removable terminals, easy replacement is possible. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The compact starters are available as direct-on-line or reversing starters and with various setting ranges. Designed for AC or DC operation, they are available with screw or spring-loaded terminals, or without terminals.
In addition to the communication link via AS-interface, the 3RA68 infeed system and auxiliary contacts as well as terminals are available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
Параметры
| Width | 90.0 |
| Height | 191.0 |
| Depth | 165.0 |
| With transformer | Нет |
| Rated operation power at AC-3, 400 V | 0.09 |
| Number of command positions | - |
| Number of auxiliary contacts as normally open contact | 2 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Suitable for emergency stop | - |
| Rated operation current Ie | 0.4 |
| Number of indicator lights | 3 |
| Overload release current setting | 0.1 |
| Supporting protocol for LON | - |
| Supporting protocol for TCP/IP | - |
| Supporting protocol for ASI | Нет |
| Supporting protocol for PROFIBUS | - |
| Supporting protocol for CAN | - |
| Supporting protocol for INTERBUS | - |
| Supporting protocol for MODBUS | - |
| Supporting protocol for Data-Highway | - |
| Supporting protocol for DeviceNet | - |
| Supporting protocol for SUCONET | - |
| Supporting protocol for other bus systems | - |
| External reset possible | - |
| Rail mounting possible | - |
| Rated control supply voltage Us at AC 50HZ | 24 |
| Rated control supply voltage Us at AC 60HZ | 24 |
| Rated control supply voltage Us at DC | 24 |
| Degree of protection (IP) | IP20 |
| Supporting protocol for SERCOS | - |
| Supporting protocol for INTERBUS-Safety | - |
| Release class | Adjustable |
| With short-circuit release | Да |
| With fuse | Нет |
| Type of electrical connection of main circuit | Other |
| Type of electrical connection for auxiliary- and control current circuit | Spring clamp connection |
| Supporting protocol for AS-Interface Safety at Work | - |
| Supporting protocol for DeviceNet Safety | - |
| Supporting protocol for EtherNet/IP | - |
| Supporting protocol for Foundation Fieldbus | - |
| Supporting protocol for PROFINET CBA | - |
| Supporting protocol for PROFINET IO | - |
| Supporting protocol for PROFIsafe | - |
| Supporting protocol for SafetyBUS p | - |
| Voltage type for actuating | AC/DC |
| Kind of motor starter | Reversing starter |
| Rated operation power at AC-3, 230 V, 3-phase | - |
| Rated power, 460 V, 60 Hz, 3-phase | - |
| Rated power, 575 V, 60 Hz, 3-phase | - |
| Rated operation current at AC-3, 400 V | - |
| Ambient temperature, upper operating limit | 40 |
| Temperature compensated overload protection | - |
| Rated conditional short-circuit current, type 2, 400 V | - |
| Rated conditional short-circuit current, type 2, 230 V | - |
| Rated conditional short-circuit current, type 1, 480 Y/277 V | - |
| Rated conditional short-circuit current, type 1, 600 Y/347 V | - |
| Degree of protection (NEMA) | Other |
| Coordination class according to IEC 60947-4-3 | Class 2 |
