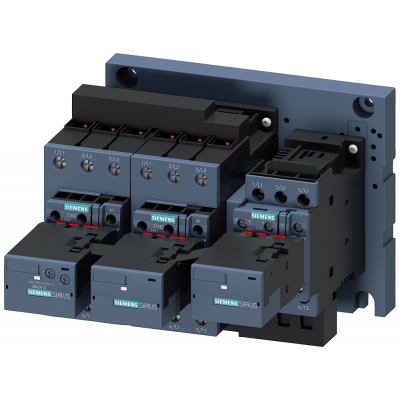

Contactor assembly for star-delta (wye-delta) start AC 3: 37 kW/400 V 20-33 V AC/DC, 3 NO + 3 NC

СБОРКА СО СХЕМОЙ ЗВЕЗДА-ТРЕУГОЛЬНИК AC3:37КВТ/400V 24-33V AC/DC ТИПОРАЗМЕР S2, ВИНТОВЫЕ КЛЕММЫ ЭЛ. И МЕХ. ВЗАИМНАЯ БЛОКИРОВКА 3НО + 3НЗ ИНТЕГР. Contactor assembly for star-delta (wye-delta) start SIRIUS 3RA24 for the soft starting of three-phase asynchronous motors. The 3RA24 contactor assembly for star-delta (wye-delta) starting is a proven and factory-fitted combination of three 3RT2 contactors which are already fully wired and interlocked both mechanically and electrically. The function module with integrated control logic and time setting, which is also included, replaces the complete wiring in the control circuit. They are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready. The 3RA24 contactor assemblies for star-delta (wye-delta) starting are available with AC and DC operation in sizes S00 to S3. They are offered with screwor spring-loaded terminals for mounting on DIN rails or screw mounting. Furthermore, versions are available for connection to IO-Link or AS-Interface. The accessories of the 3RT2 contactors are standard for all sizes and can also be used for the contactor assemblies. The 3RA24 contactor assemblies for star-delta (wye-delta) starting will succeed the proven 3RA14 series. Simple, efficient and always up to date - SIRIUS modular system.

Параметры

Function	Star-delta contactor
Rated operation power at AC-3, 400 V	37.0
Rated operation current Ie at AC-3, 400 V	80
Rated control supply voltage Us at AC 50HZ	20
Rated control supply voltage Us at AC 60HZ	20
Rated control supply voltage Us at DC	20
Degree of protection (IP)	IP20
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC/DC
Degree of protection (NEMA)	Other
Rated operation power NEMA	-
